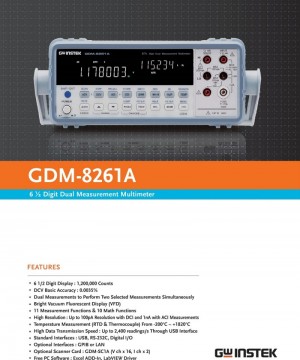

GW Instek GDM-8261A 6 ½ Digit Dual Measurement Multimeter

GW Instek GDM-8261A 6 ½ Digit Dual Measurement Multimeter

============================================================

Features

·         6 1/2 Digit Display：1,200,000 counts

·         DCV Basic Accuracy：0.0035%

·         Dual Measurements to perform two selected measurements simultaneously

·         Bright Vacuum Fluorescent Display (VFD)

·         Provide AC+DC Voltage or Current Measurement Functions

·         11 Measurement Functions & 10 Math Functions

·         High Resolution: Up to 100pA with DCI and 1nA with ACI Measurements

·         Temperature Measurement (RTD & Thermocouple) from -200°C to +1820°C

·         High Transmission Speed: Up to 2,400 readings/sec through the USB

·         Standard Interfaces : USB, RS232C, Digital I/O

============================================================

Specifications

DC Voltage :

*Range : 100mV – 1000V

*Resolution : 0.1µV

Resistance :

*Range : 100Ω - 100MΩ

*Resolution : 100µΩ

DC Current :

*Range : 100µA – 10A

*Resolution : 10µA

Continuity : 1000Ω

Diode Test : 1V

True RMS AC Voltage :

*Range : 100mV; 1V – 750V

*Resolution : 0.1µV; 1µ - 1mV

True RMS AC Current :

*Range : 1mA – 10A

*Resolution : 1nA

Frequency / Period : 100mV – 750V

Temperature (RTD) : -200°C – 600°C

Temperature (Thermocouple) : -200°C – 1820°C

Display : VFD, Tow Colors Display

Interface : RS -232C, USB, Digital I/O

Power Source : AC 100V / 120V / 220V / 240V ±10%; Power consumption: Max. 25VA

Power Line Frequency : 45Hz to 66Hz and 360Hz to 440Hz

Dimensions : 265(W) x 107(H) x 350(D) mm

Weight : Approx. 3.1kg

Accessories : Quick start guide x 1, Power cord x 1, Test lead GTL-207A x 1, USB Cable GTL-247 x 1, CD x 1 (including complete user manual, upgrade program and PC software), Calibration key GDM-01 x1 (for Firmware upgrade)

===========================================================
