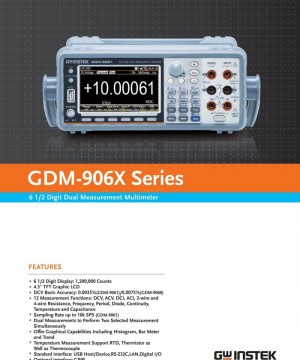

GW Instek GDM-9061 6 ½ (1200000 counts) Dual Digit Measurement Multimeter

GW Instek GDM-9061 6 ½ (1200000 counts) Dual Digit Measurement Multimeter

============================================================

Features

·         6 1/2 Digit Display:1,200,000 Counts

·         4.3 TFT Graphic LCD

·         DCV Basic Accuracy:0.0035%(GDM-9061)

·          12 Measurement Functions: DCV, ACV, DCI, ACI, 2-wire and 4-wire Resistance, Frequency, Period, Diode, Continuity, Temperature and Capacitance

·         Sampling Rate up to 10k SPS (GDM-9061)

·         Dual Measurement Function to Providing Two Selected Measurement Simultaneously

·         Offer Graphical Capabilities lncluding Histogram, Bar Meter and Trend

·         Temperature Measurement Support RTD, Thermistor as Well as Thermocouple

·         Standard Interfaces: USB Host/Device, RS-232C, LAN, Digital I/O

============================================================

Specifications

DC Voltage :

*Range : 100mV – 1000V

*Resolution : 0.1µV

Resistance :

*Range : 100Ω - 100MΩ

*Resolution : 100µΩ

DC Current :

*Range : 100µA – 10A

*Resolution : 10µA

Continuity : 1000Ω

Diode Test : 5V

True RMS AC Voltage :

*Range : 100mV; 1V – 750V

*Resolution : 0.1µV; 1µ - 1mV

True RMS AC Current :

*Range : 100µA – 10A

*Resolution : 0.5V

Frequency / Period : 100mV – 750V

Temperature (RTD) : -200°C – 600°C

Temperature (Thermocouple) : -200°C – 1820°C

Temperature (Thermistor) : -80°C – 150°C

Capacitance : 1nF - 100µF

Display : 4.3" color TFT WQVGA (480x272) with LED backlight

Interface : RS -232C, USB host/device, LAN, Digital I/O; GPIB(optional)

Power Source : AC 100V / 120V / 220V / 240V ±10%

Power Line Frequency : 50Hz / 60Hz and 400 Hz ±10%

Power Consumption : Max. 25VA

Dimensions : 267(W) x 107(H) x 302(D) mm (with bumper); 220(W) x 88 (H) x 277(D) mm (without bumper)

Weight : Approx. 3.53kg

Accessories : Safety Instructions x 1, Power cord x 1, USB cable GTL-246 x 1, Test lead GTL-217 x 1, CD x 1(including the complete user manual, upgrade program and PC software, DMM-Viewer2)

===========================================================
