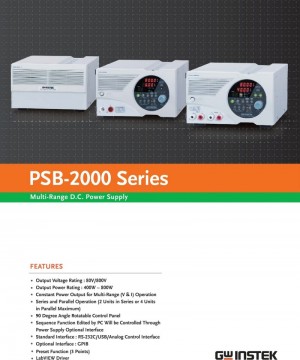

GW Instek PSB-2400L Programmable Switching D.C. Power Supply

GW Instek PSB-2400L Programmable Switching D.C. Power Supply

============================================================

Features

·         Output Voltage Rating : 80V/800V

·         Output Power Rating : 400W~800W

·         Constant Power Output for Multi-Range (V&I) Operation

·         Series and Parallel Operation (2 Units in Series or 4 Units in parallel Maximum)

·         Standard Interface : RS-232C / USB / Analog Control Interface

============================================================

Specifications

Output Rating :

- Channel : 1

- Voltage : 0 – 80V

- Current : 0 – 40A

Output Power (Max.) : 400W

Regulation (CV) :

- Load : 0.01% ± 3mV of rating voltage

- Line : 0.01% ± 2mV of rating voltage

Regulation (CC) :

- Load : 0.02% ± 3mV of rating voltage

- Line : 0.01% ± 2mV of rating voltage

Ripple & Noise (Noise Bandwidth 20MHz, Ripple Bandwidth = 1MHz)

- CV p-p : 90mV

- CV rms : 4mV

- CC rms : 30mA

Power Source : AC 100 to 240V, 50 to 60Hz, Single Phase

Operating Temperature : 0°C to 40°C

Interface : RS-232C/USB

Dimensions (WxHxD) : 210 x 124 x 290 mm

Weight : Approx. 5kg

Accessories : User Manual (CD) x 1, AC Power Cord x 1, External Control Connector (26pin), Screws for output terminals on rear panel, Protection covers for output terminals on rear panel, Protection caps for output terminals on the front panel, GND Cable, USB Cable, Local Bus

===========================================================
