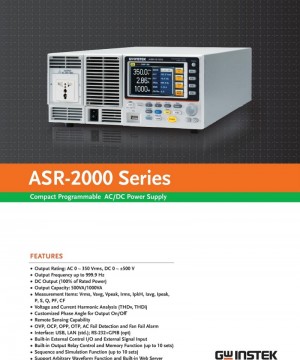

GW Instek ASR-2100 Programmable AC/DC Power Source

GW Instek ASR-2100 Programmable AC/DC Power Source

============================================================

Features

·         Output Rating: AC 0 – 350 V RMS, DC 0 - ± 500 V

·         Output Frequency up to 999.9 Hz

·         DC Output (100% of Rated Power)

·         Measurement Items: V RMS, V AVG, V peak, I RMS, I PKH, I AVG, I peak, P, S, Q, PF, CF

·         Voltage and Current Harmonic Analysis(THDv, THDi)

·         Remote Sensing Capability

·         OVP, OCP, OPP, OTP, AC Fail Detection and Fan Fail Alarm.

·         Support Arbitrary Waveform Function

·         Output Capacity: 500VA/ 1000VA

·         Customized Phase Angle for Output On/Off

·         Sequence and Simulation Function(up to 10 sets)

·         Interface: USB, LAN(std.); RS-232+GPIB(opt.)

·         Built-in External Control I/O and External Signal Input

·         Built-in Output Relay Control

·         Memory Function (up to 10 sets)

·         Built-in Web Server

============================================================

Specifications

Input Ratings (AC RMS)

Nominal Input Voltage : 100V AC to 240V AC

Input Voltage Range : 90V AC to 264V AC

Phase : Single phase, Two-wire

Input Frequency Range : 47Hz to 63Hz

Max. Power Consumption : 1500VA or less

Power factor*1 :

- 100VAC : 0.95 (typ.)

- 200VAC : 0.90 (typ.)

Max. Input Current :

- 100VAC : 15A

- 200VAC : 7.5A

*1. For an output voltage of 100V/200V (100V/200V range), maximum current, and a load power factor of 1.

Output Rating for DC Mode

Voltage

- Setting Range*1 : -250V to +250V/-500V to +500V

- Setting Resolution : 0.1V

- Accuracy*2 : ±(|0.5 % of set| +0.6V/1.2V)

Maximum current*3 :

- 100V : 10A

- 200V : 5A

Maximum Peak Current*4 :

- 100V : 40A

- 200V : 20A

Power Capacity : 1000 W

*1. 100V/200V range

*2. For an output voltage of -250V to -25V, +25V to +250V/-500V to -50V, +50V to +500V, no load, AC volatge setting 0V (AC+DC mode) and 23°C ± 5°C

*3. For an output voltage of 1.4V to 100V/2.8V to 200V. Limited by the power capacity when the output voltage is 100V to 250V/200V to 500V.

*4. Within 5ms, Limited by the maximum current.

Operating Temperature Range : 0°C to 40°C

Dimensions : 285(W) × 124(H) × 480(D) (not including protrusions)

Weight : Approx. 11.5 kg

Accessories : CD ROM(User Manual, Programming Manual), Safety Guide, Power Cord, Mains Terminal Cover Set, Remote Sense Terminal Cover Set, GTL-123 Test Lead, GTL-246 USB Cable

===========================================================
