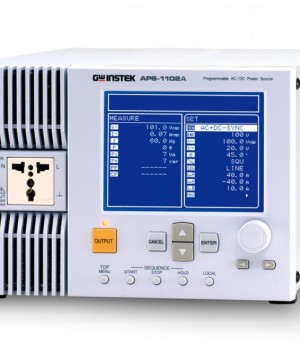

GW Instek APS-1102A Programmable AC/DC Power Supply

GW Instek APS-1102A Programmable AC/DC Power Supply

============================================================

Features

·         5.7" Large LCD Display

·         Output Capacity: 1kVA(for AC 200V Input)

·         Output Modes: AC and AC+DC Combined with any of four signal sources

·         Signal Source: Internal(INT), External(EXT), Internal + External(ADD) and Synchronization(SYNC)

·         Arbitrary Waveform Power Output

·         Power Amplifier of External Signal

·         Measurement Functions: Voltage, Current, Power, Frequency, Power Factor, CF, and Harmonic Current

·         Capacitor Input Load Supported

·         Sequence Function Allows Programming of Output Patterns

·         Limiter Function (Upper/Lower/Limit Function)

·         30 sets of Save/Recall Memory

============================================================

Specifications

Maximum Output Capacity :

- AC (Input) : 750VA (100 to 180V); 1000VA (180 to 250V)

- DC (Input) : 750W (100 to 180V); 1000W (180 to 250V)

Output Voltage

- AC : 0.0V to 155.0Vrms (100V); 0.0V to 310.0Vrms (200V)

- DC : "-220.0V to +220.0V (100V); "-440.0V to +440.0V (200V)

Output Max. Current :

- AC : 10A (100V); 5A (200V)

- DC : 10A (100V); 5A (200V)

Output Maximum Peak Current : 40Apk (100V); 20Apk (200V)

Frequency :

- Setting Range : 1.0Hz to 550.0Hz

- Setting Accuracy : ±100ppm(23±5°C)

Waveform Output Voltage Distortion : 0.5% MAX(50Hz / 60Hz)

Line Voltage Regulation : 0.2% Maximum, Power input voltage 100V /120V/230V , no load, rated output

Load Voltage Regulation : 0.5% Maximum, At output terminal under no load and rated resistance load

Power Source : AC100V to 230V ± 10% ; 50Hz / 60Hz±2Hz

Power Consumption/Factor : 1.4kVA max / 0.95min (AC100V) ; 0.9min(AC200V)

Interface : USB & RS232 Standard

Dimension(WxHxD) & weight : 258 x 176 x 440; Approx. 9.7kg

===========================================================
