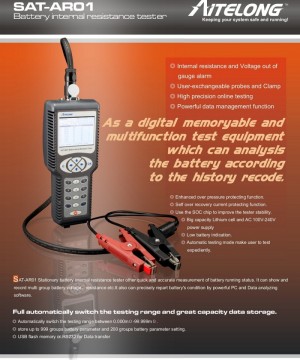

Aitelong SAT-AR Battery Internal Resistance Tester

Aitelong SAT-AR Battery Internal Resistance Tester

============================================================

Internationally, resistance test is widely applied in daily battery maintenance instead of voltage check, because resistance is important parameter to test battery quickly and accurately worldwide.SAT-AR Storage battery internal resistance tester, is also named stationary battery impedance tester. It is digital and multifunction test equipment which can quickly and accurately measure the battery running status. It can show and record multi-group battery voltage, resistance etc., and also precisely judge battery’s condition (Good or Bad) and data analyzing software.

Features

·         High precision online testing, automatically switch the testing range between 0.000mΩ-99.999mΩ

·         Great data storage capacity, 999 groups of test results (Max. 500 cell battery per group), 200 groups of setting parameter.

·         English Menu, 320*240 LCD Display.

·         SD card can save data, and export data to PC to analysis the battery according to the history data.

·         Enhanced over pressure protecting function.

·         Self recovery the over current protecting function.

·         Use the SOC chip to improve the tester stability.

·         Big capacity Lithium cell and AC 100V-240V power supply

·         Low battery indication.

·         Smart and portable, one person can finish all test, good at saving time and cost.

·         Automatic testing mode make user to test expediently.

·         Powerful PC software for manage the testing data.

·         Automatically analysis battery “bad” state.

·         Building the history record base, describe the battery sate curve

·         Batteries contrastive analysis in the same battery pack.

·         All batteries are administrated by different levels (excellent, good, medium, bad)

Function

·         Test the battery voltage and internal resistance online.

·         Battery internal resistance and voltage out of gauge alarm.

·         All the battery test results are marked by group No., user can manage the data conveniently.

·         PC software analysis the battery according to the history data.

============================================================

Specifications

Model : SAT-AR

Testing Range : 0.000 to 20.000V internal resistance & voltage; 20.000 to 25.000V voltage only

Testing Voltage Precision : ±0.2%rdg  ±6dgt

Testing Internal Resistance Range : 0.000mΩ to 99.999mΩ

Testing Internal Resistance Precision : ±0.5%rdg  ±6dgt

Communication Mode : SD card

Display : 320 x 240 LCD

Power Supply : 10.8V,2000mAh, rechargeable lithium battery

Size : 280 x 105 x 83 mm

N.W : 1.2kg

===========================================================
