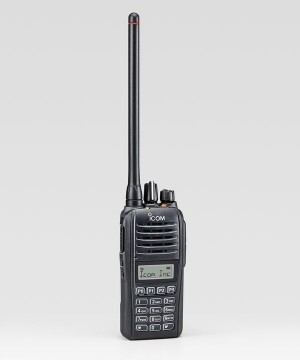

ICOM IC-F1100DT IDAS Radios VHF Digital Handheld Transceivers

ICOM IC-F1100DT IDAS Radios VHF Digital Handheld Transceivers

============================================================

Features

·         136–174, 350–400, 400–470, 450–512, 450–520 MHz versions

·         128 Channels / 8 Zones (for LCD types)

·         16 Channels (for non-display types)

·         Icom’s customized speaker offers a louder 1500 mW audio output

·         An engineered casing that amplifies and improves acoustic sound clarity

·         Compact (52.2 (W) × 111.8 (H) mm; 2.1 × 4.4 in) and lightweight

·         IP67/55/54 waterproof and dust-tight protection

·         Tested to 12 categories of MIL-STD-810-G environmental tests

·         AquaQuake™ – Expels water ingress from the speaker grill

·         DTMF autodial memories

·         16-position rotary selector and ON/OFF volume knob

·         Programmable keys – Increase the number of programmable key assignments by using the “Shift key”

·         Operating times of up to 18 hours (with the supplied BP-280 battery pack)

·         Eight character alphanumeric display (for LCD types)

·         Three color LED

============================================================

Specifications

GENERAL

Frequency coverage* (*Varies according to version) : 136–174 MHz (NXDN/dPMR)

Number of Channels : 128 channels/ 8 zones

Type of Emission* (*Depending onversion) :

- 11K0F3E, 4K00F1E, 4K00F1D (USA)

- 16K0F3E, 14K0F3E, 11K0F3E, 8K50F3E, 4K00F1E, 4K00F1D (EXP)

- 16K0F3E, 14K0F3E, 8K50F3E, 4K00F1E, 4K00F1D (EUR)

Power Supply Requirement : 7.5V DC nominal

Current Drain (approx.) :

- TX : 1.3A

- RX : 520 mA /110 mA (Max. audio (internal SP)/Standby)

Antenna Impedance : 50Ω

Operating Temperature Range (Radio specification) :

–30°C to +60°C; –22°F to +140°F (Radio specification) (USA/EXP)

–25°C to +55°C (Radio specification) (EUR)

Dimensions (W × H × D; Projections not included) : 52.2 × 111.8 × 34.1 mm (With BP-280)

Weight (approx.) : 277 g (With BP-280 and MB-133)

Supplied Accessories (*May differ, depending on transceiver version) : Battery pack (BP-280), Belt clip (MB-133), Antenna, Desktop charger (BC-213*), AC adapter* (BC-242 or BC-123SE/SUK/SV)

TRANSMITTER

Output Power (Hi, L2, L1) : 5 W, 2 W, 1 W

Maximum frequency deviation : ± 5.0 kHz (25 kHz), ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz)

Spurious Emissions :

- 70 dB minimum (USA/EXP)

- 0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR/EXP)

Frequency Stability : ±2.0ppm

Audio Harmonic Distortion : 0.8% typ. (25 kHz), 0.9% typical (20 kHz), 1.0% typical (12.5 kHz) (at AF 1 kHz 40% deviation)

FM Hum and Noise (without CCITT filter) : 46 dB typ. (25 kHz) (EXP), 44 dB typ. (12.5 kHz) (USA/EXP)

Residual Modulations (with CCITT filter) : 51 dB typical (25 kHz), 49 dB typical (20 kHz), 45 dB typical (12.5 kHz) (EUR/EXP

FSK Error : 5% maximum

External Microphone Connector : 3-conductor 2.5 (d) mm (1/10 in)/2.2 kΩ

RECEIVER

Sensitivity :

- Analog (at 12dB SINAD) : 0.24 μV typical

- Analog (at 20dB SINAD) : –5 dBμV typ. emf (25/20 kHz), –2 dBμV typ. emf (12.5 kHz)

- Digital (at 5% BER) : –9 dBμV typical emf (0.18 μV typical)

Adjacent Channel Selectivity : 77 dB typ. (25 kHz), 75 dB typ. (20 kHz), 67 dB typ. (12.5 kHz), 59 dB typ. (digital)

Spurious Response Rejection : 80 dB typical

Intermodulation Rejection :

- Digital : 71 dB typ. (USA/EXP), 74 dBμV emf typ. (EUR/EXP)

- Analog : 76 dB typ. (25 kHz, EXP), 75 dB typ. (12.5 kHz, USA/EXP), 69 dB typ. (EUR/EXP)

Hum and Noise :

- With CCITT Filter : 48 dB typ. (25 kHz, EXP), 43 dB typ. (12.5 kHz, USA/EXP)

- Without CCITT Filter : 51 dB typ. (25 kHz), 49 dB typ. (20 kHz), 46 dB typ. (12.5 kHz) (EUR/EXP)

AF output power (at 5% distortion 8Ω load) :

*Internal SP : 1500 mW typical

*External SP :

- 450 mW typical (single end)

- 1500 mW typical (BTL, HM-222HLWP connected*)

External Speaker Connector : 2-conductor 3.5 (d) mm (1⁄8 in)/8 Ω

===========================================================
