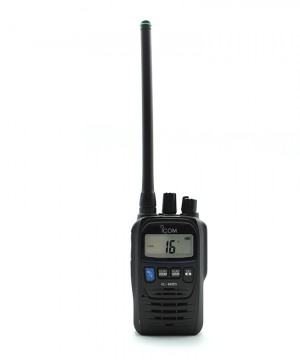

ICOM IC-M85UL Version VHF Marine Transceiver

ICOM IC-M85UL Version VHF Marine Transceiver

============================================================

Features

·         5W output power for hazardous locations approved by UL

·         Intrinsically safe: Class I, Division 1, Groups C, D; Class II, Division 1, Groups E, F, G; Class III. T3C.

·         Non-incendive : Class I, Division 2, Groups A, B, C, D

·         ANSI/TIA-4950-A, ANSI/UL 121201

·         Compact and lightweight commercial grade marine and land mobile hybrid radio

·         Covering 136–174 MHz land mobile frequency, in addition to VHF marine channels

·         700 mW powerful audio provides clear communications

·         Abundant Emergency Functions; Man Over Board, Man Down, and Lone Worker Alarms

·         Easy switch between channel groups (Marine LMR) with a programmable multi-function button on the top panel

·         IP67 and MIL-STD-810G rugged construction

·         AquaQuake™ prevents audio degradation from a water-logged speaker

·         Ultra Compact Intrinsically Safe Radio with 5 Watt Power Output

·         11 hours of long-lasting operating time (with BP-292IS, TX: RX: Standby = 5 : 5 : 90)

·         Optional speaker-microphone, HM-184UL

============================================================

Specifications

GENERAL

Frequency Coverage :

*Marine Channels :

- TX : 156.025–157.425MHz

- RX : 156.050–163.275MHz

*LMR Channels :

- TX/RX : 146.000–174.000MHz

Usable Channel Groups, Number of Channels :

*Marine Channels : INT, USA*, CAN, WX* channels (*Varies according to version)

*LMR Channels : 100 LMR channels

Type of Emission (Channel Spacing) :

*Marine Channels :

- USA : 16K0G3E (25kHz)

- EXP : 16K0G3E (25kHz)

*LMR Channels :

- USA : 11K0F3E (12.5kHz)

- EXP : 16K0F3E (25kHz); 11K0F3E (12.5kHz)

Power Supply Requirement : 7.2V DC nominal

Current Drain (approx.) :

*Marine Channels :

- TX (USA/EXP) : 1.5A (at 5W)

*LMR Channels :

- TX : USA : 0.9A (at 2W); EXP : 1.5A (at 5W)

- RX (max. Audio) : 0.45A

Antenna Impedance : 50 Ω

Operating Temperature Range :

*Marine Channels : -20°C to +60°C

*LMR Channels : −30°C to +60°C

Dimensions (W × H × D;) (Projections not included) : 59 x 92 x 34.1 mm (with BP-292UL)

Weight (approx.) : 285 g (with BP-292UL, FA-SC58V and MBB-3)

Supplied Accessories (*May differ, depending on transceiver version) : Battery pack (BP-292UL), Desktop charger (BC-227), AC adapter (BC-123SA/SE*), Antenna (FA-S58V), Belt clip (MBB-3), Hand strap

TRANSMITTER

Output Power (at 7.2V DC) :

*Marine Channels :

- USA/EXP : 5/3/1W

*LMR Channels :

- USA : 2/1W

- EXP : 5/3/1W

Max. Frequency Deviation :

*Marine Channels : ±5.0kHz

*LMR Channels : ±5.0kHz (Wide); ±2.5kHz (Narrow

Frequency Stability : ±5.0ppm

Spurious Emissions : -70dBc typical

Hum and Noise :

*Marine Channels : 40dB

*LMR Channels : 40dB (Wide); 34dB (Narrow)

Audio Harmonic Distortion : 10% (at 60% deviation)

Modulation Limiting : 60–100% of maximum deviation

RECEIVER

Sensitivity (at 12 dB SINAD) : 0.25μV typ.

Adjacent Channel Selectivity :

*Marine Channels : 70dB typ.

*LMR Channels : 70dB typ.(Wide); 55dB typ.(Narrow)

Spurious Response : 70dB typical

Intermodulation : 70dB typical

Hum and Noise :

*Marine Channels : 40dB

*LMR Channels : 40dB (Wide); 34dB (Narrow)

Audio Output Power :

- Internal SP : 700mW typical (at 10% distortion with 12 Ω load)

- External SP : 700mW (at 10% distortion with 8 Ω load)

===========================================================
