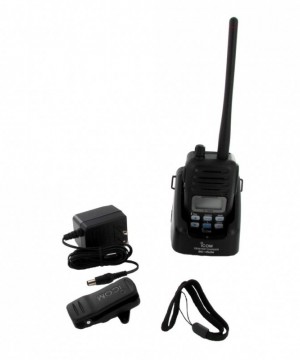

ICOM IC-M88 UL Version VHF Marine Transceiver

ICOM IC-M88 UL Version VHF Marine Transceiver

============================================================

Features

·         Selectable 5/3/1 W output power

·         Auto WX scan and WX alert function

·         Simple Up/Down switches for operating channel selection

·         Instant access to Ch. 16 and Ch. 9 (or call channel)

·         Simple add/delete TAG scanning operation

·         Battery indicator shows remaining battery power in 4 levels

·         Beep sound is programmable for each button

·         The self check function checks internal temperature, connected battery voltage (over voltage detection), and water intrusion

·         Monitor button opens squelch

·         Automatic scan function

·         Key lock function

·         2 step power saver

============================================================

Specifications

GENERAL

Frequency Coverage :

*Marine Channels :

- TX : 156.025–157.425MHz

- RX : 156.050–163.275MHz

*LMR Channels :

- TX/RX : 146.000–174.000MHz

Usable Channel Groups, Number of Channels :

*Marine Channels : INT, USA, CAN, WX channels

*LMR Channels : 22 LMR channels

Type of Emission :

*Marine Channels : 16K0G3E

*LMR Channels : 28K50F3E

Channel Spacing :

*Marine Channels : 25kHz

*LMR Channels : 12.5kHz

Power Supply Requirement : 7.4V DC nominal

Current Drain (approx.) :

- TX (at 5W) : 1.6 A typ

- RX (max. Audio) : 200 mA

Antenna Impedance : 50 Ω (SMA type)

Operating Temperature Range :

*Marine Channels : -20°C to +60°C

*LMR Channels : −30°C to +60°C

Dimensions (W × H × D;) (Projections not included) : 62 x 97 x 39 mm (with BP-227UL)

Weight (approx.) : 280 g (with BP-227UL)

Supplied Accessories (*varies according to version) : Battery pack, Battery charger, AC adapter*, Swivel belt clip, Antenna (FA-S59V), Hand strap

TRANSMITTER

Output Power (Hi/Mid/Low) : 5/3/1 W

Max. Frequency Deviation :

*Marine Channels : ±5.0kHz

*LMR Channels : ±2.5 kHz

Audio Harmonic Distortion : Less than 10% (at 60% deviation)

Spurious Emissions : –70dBc typ.

Adjacent Channel Power :

*Marine Channels : 70dB

*LMR Channels : 60dB

Hum and Noise Ratio :

*Marine Channels : 40dB

*LMR Channels : 34dB

RECEIVER

Sensitivity (at 12 dB SINAD) : 0.25μV typ.

Squelch Sensitivity : 0.35μV typical (at threshold)

Adjacent Channel Selectivity :

*Marine Channels : 70dB typ.

*LMR Channels : 60dB typ.

Intermodulation Rejection : 70dB typ.

Spurious Response : 70dB typ.

Hum and Noise :

*Marine Channels : 40dB

*LMR Channels : 34dB

Audio Output Power : 350mW (at 10% distortion with 8 Ω load)

===========================================================
