ICOM IC-2730A VHF/UHF Dual Band Amateur Mobile Transceiver

ICOM IC-2730A VHF/UHF Dual Band Amateur Mobile Transceiver

============================================================

Features

·         Built-in 50 CTCSS and 104 DTCS tones with Split Tone Function

·         CS-2730 free download PC programming software

·         Versatile scanning capability

·         Squelch delay and squelch attenuator

·         Sub band auto mute function

·         Sub band busy beep function

·         Auto repeater functions (Depending on the transceiver version)

·         Auto power off

·         Time-out-timer

·         16 DTMF auto dial memories

·         Weather channel receive with weather alert

·         CI-V remote control capability (through the OPC-478UC)

============================================================

Specifications

GENERAL

Frequency Coverage :

*USA Version :

- Transmit : 148-148, 430-450MHz

- Receive : 118-174, 375-550MHz*1

*Export Version :

- Transmit : 137-174, 400-470MHz

- Receive : 118-174, 375-550MHz*2

Guaranteed range *1 144–148, 430–450MHz, *2 144–148, 430–440MHz

Number of Memory Channels : 1052 channels (including 50 scan edges and 2 Call)

Type of Emission : F2D, F3E (FM, FM-N)

Frequency Stability : ±2.5 ppm

Power Supply Requirement : 13.8V DC ±15%

Current Drain (approximately) :

- TX : 13 A

- RX : 1.8 A/1.2 A (Max. audio/Stand-by)

Antenna Impedance : 50 Ω (SO-239)

Operating Temperature Range : −10°C to +60°C

Dimensions (W × H × D;) (Projections not included) : 150 × 40 × 151 mm (Main unit), 150 x 50 x 27.2 mm (Controller)

Weight (approximately) : 1.2 kg (Main unit), 140 g (Controller)

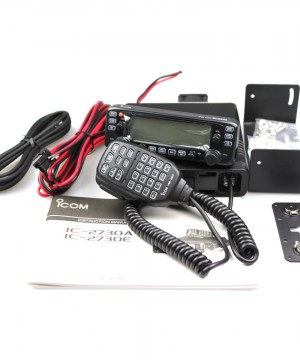

Supplied accessories : Hand Microphone (HM-207), Controller Cable, Microphone Hanger, DC Power Cable, Spare Fuses

TRANSMITTER

Output power (at 13.8V DC) : 50W, 15W, 5W (TPE version : 25W, 15W, 5W)

Max. Frequency Deviation ±5.0kHz/±2.5kHz (W/N)

Spurious Emissions : Less than –60dBc

Microphone Impedance : 600 Ω (8-pin modular)

RECEIVER

Intermediate Frequencies :

- A band : 38.85MHz/450kHz

- B band : 46.35MHz/450kHz

Sensitivity (at 12 dB SINAD) : Less than 0.18 μV

Selectivity : More than 60dB/55dB (W/N)

Spurious Response Rejection

- A band : More than 60dB/55dB (V/U)

- B Band : More than 60dB/60dB (V/U)

Audio Output Power : More than 2W (10% dist. 8 Ω)

External Speaker Connector : 2 conductor 3.5 (d) mm (1⁄8 mso-bidi-theme-font:minor-latin" lang="EN-US">ʺ)/8 Ω

Receiver Sensitivity

FM/FM-N (12 dB SINAD)

- 137–159.995MHz* : Less than 0.32μV

- 160–174.000MHz : Less than 0.56μV

- 375–399.995MHz : Less than 0.56μV

- 400–499.995MHz* : Less than 0.32μV

- 500–550.000MHz : Less than 0.56μV

AM/AM-N (10 dB S/N) :

- 118–136.991MHz : Less than 1μV

* Except amateur bands

===========================================================
