ICOM IC-A120 Avonics VHF Air Band Transceiver

ICOM IC-A120 Avonics VHF Air Band Transceiver

============================================================

Features

·         Compatible with both 12V and 24V systems

·         Dualwatch and priority scan functions

·         Power on password protection

·         CI-V commands for external control

·         Connect with other radio devices with the VE-PG3 RoIP gateway

============================================================

Specifications

GENERAL

Frequency coverage (TX/RX) : 118.000–136.992MHz

Channel Spacing : 25kHz/8.33kHz

Type of Emission : 6K00A3E, 5K60A3E (FCC/EXP); 6K00A3E (Industry Canada)

Operating Temperature : –30˚C to +60˚C

Frequency Stability : ±5ppm (–30˚C to +60˚C)

Antenna Connector : SO-239 (50Ω)

Number of Memory Channels : 200 channels

Power Supply Requirement : 13.75V/27.5V DC

Current Drain (at 13.75V)

- Transmitting : 5.0A (maximum)

- Receiving : 4.0A (at AF max.), 0.5A (at stand-by)

Dimensions (W×H×D, Projections not included) : 161 × 45 × 175 (mm) (approximately)

Weight (approximately) : 1.5kg (main unit)

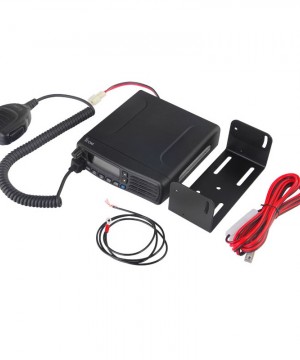

Supplied Accessories : Hand microphone (HM-216), DC power cable, Mounting bracket kit, Microphone hanger kit, Fuses

TRANSMITTER

Output power (at 13.75V) (Carrier Power) : 9.0W typical; 10.0W maximum

Spurious Emissions : Less than –60dBc

Modulation Capability : 70% to 100%

Microphone Impedance : 600Ω

RECEIVER

Intermediate Frequencies : 38.85MHz/450kHz (1st/2nd)

Sensitivity (at 6dB S/N) : Less than 1μV

Selectivity :

- 8.33kHz : 2.778/7.37kHz (6dB/60dB)

- 25kHz : 8/25kHz (6dB/60dB)

Spurious Response : More than 74dBμ

Audio Output Power (10% distortion, 60% modulation) :

- Internal SP (8Ω load) : 1.5W typical

- External SP (8Ω load) : More than 10W

- Headphone (500Ω load) : More than 100mW

===========================================================
