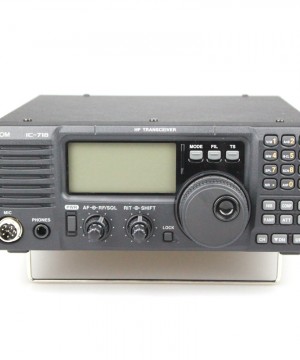

ICOM IC-718 HF All Band Transceiver Amateur Base Stations

ICOM IC-718 HF All Band Transceiver Amateur base Stations

============================================================

Features

·         USB, LSB, CW, RTTY (FSK) and AM modes are built-in

·         Level adjustable noise blanker

·         RF attenuator and Pre-amplifier

·         Variety of scanning function types

·         Total 101 memory channels are available

·         Hand microphone is supplied, and more...

============================================================

Specifications

GENERAL

Frequency Coverage :

- Receiver : 0.030–29.999 MHz*1

- Transmitter : 1.800–1.999*2, 3.500–3.999*2, 7.000–7.300, 10.100–10.150, 14.000–14.350, 18.068–18.168, 21.000–21.450, 24.890–24.990, 28.000–29.700 MHz

*1 Guaranteed range: 0.500–29.999MHz. *2 Varies according to version.

Mode : USB, LSB, CW, RTTY (FSK), AM

Number of Channels : 101 (99 regular, 2 scan edges)

Frequency Resolution : 1 Hz

Frequency Stability :

- Less than ±200 Hz from 1 min. to 60 min. after power ON.

- Less than ±30 Hz/hour at +25˚C after that.

- Less than ±350 Hz between 0˚C to +50˚C

Antenna Connectors : SO-239 (50 Ω unbalanced)

Power Supply Requirement : 13.8 V DC ±15%

Power Consumption :

- TX : 20 A (at 100 W output power)

- RX : 1.3 A (Standby), 2.0 A (Maximum audio)

Operating Temperature Range : –10°C to +60°C

Dimensions (W × H × D) (projections not included) : 240 × 95 × 239 mm

Weight (approximately) : 3.8 kg

Supplied accessories (Not supplied or may differ, depending on version) : Hand microphone, DC power cable, Spare fuses

TRANSMITTER

Output Power :

- SSB/CW/RTTY : 2–100 W

- AM : 2–35 W

Modulation System :

- SSB : Balanced modulation

- AM : Low level modulation

Spurious Emissions : Less than –50 dB below peak output power

Carrier Suppression : More than 40 dB

Unwanted Sideband : More than 50 dB

Microphone Impedance : 8-pin connector 600 Ω

RECEIVER

Receiver System : Double-conversion superheterodyne

Sensitivity (at 10 dB S/N) :

- SSB/CW/RTTY : 0.16 μV (1.8– 29.999999 MHz)

- AM : 13 μV (0.5– 1.799999 MHz); 2 μV (1.8– 29.999999 MHz)

Sensitivity for RED versions (#43,#63) (at 12 dB SINAD) :

- SSB (BW= 2.4 kHz) : 10 dBμV emf (1.8–2.999999 MHz); 0 dBμV emf (3.0–29.999999 MHz)

- AM (BW=6 kHz, Mod=60%) : 16 dBμV emf (1.8–2.999999 MHz); 6 dBμV emf (3.0–29.999999 MHz)

Squelch sensitivity (Threshold) : Less than 5.6 μV (SSB)

Selectivity :

- SSB, CW, RTTY : More than 2.1 kHz/–6 dB; Less than 4.5 kHz/–60 dB

- AM : More than 6.0 kHz/–6 dB; Less than 20 kHz/–40 dB

Spurious and Image Rejection : More than 70 dB (1.8 – 29.999 MHz)

Audio Output Power : More than 2.0 W (at 10% distortion with an 8 Ω load)

External Speaker Connector : 2-conductor 3.5 (d) mm (1⁄8ʺ) /8Ω

===========================================================
