ICOM ID-5100A Amateur VHF/UHF Dual Band D-STAR Transceiver

ICOM ID-5100A Amateur VHF/UHF Dual Band D-STAR Transceiver

============================================================

Features

·         DV/FM repeater list function assists you in accessing nearby repeaters, even in areas you visit for the first time.

·         Dplus reflector linking commands are added to the DR function to allow easy reflector operation.

·         SD card slot for voice and data storage

·         DV fast data mode allows users to use data in place of voice frames to transfer data 3.5 times faster than in the conventional DV mode.

============================================================

Specifications

GENERAL

Frequency Coverage :

*USA Version :

- Transmit : 144-148, 430-450MHz*1

- Receiver : 118-174, 375-550MHz*1

*EXP Version :

- Transmit : 137-174, 400-470MHz*2

- Receiver : 118-174, 375-550MHz*2

Guaranteed range: *1 144-148, 440-450MHz. *2 144-148, 430-440MHz

Type of Emission : F2D, F3E, F7W

Mode :

- DV, FM, FM-N

- AM (RX only), AM-N (RX only)*

*Depending on version

Operating Temperature Range : -10°C to +60°C

Frequency Stability : ±2.5ppm (-10°C to +60°C on the basis of 25°C)

Digital TX Speed : 4.8kbps

Voice Coding Speed : 2.4kbps

Antenna Impedance : 50Ω (SO-239)

Number of Memory Channels : 1000 regular channels, 4 call channels, 50 program scan edges and 1500 repeater memories

Power Supply Requirements : 13.8V DC ±15%

Current Drain :

*RX :

- Stand-by : 1.2A

- Max. Audio : 1.8A (Dualwatch, with Ext. SP 8Ω load)

*TX : 13.0A

Dimensions (W x H x D, projections not included) :

- Main Unit : 150 x 40 x 172.6 mm

- Controller : 182.2 x 81.5 x 24.7 mm

Weight (approx.) :

- Main Unit  : 1.3kg

- Controller : 260g

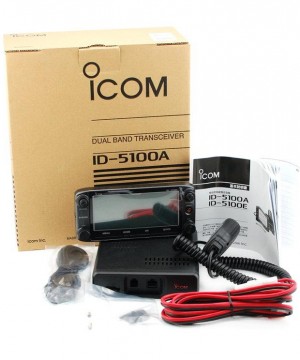

Supplied accessories (*Not supplied or may differ, depending on version) : Hand microphone (HM-207), DC power cable (OPC-1132), Controller cable, OPC-837 (3.5 m; 11.4 ft), Controller bracket (MBA-2*), CD (CS-5100 and instruction handbook PDF), Microphone hanger, Spare fuse

TRANSMITTER

Output Power : 50W, 15W, 5W

Modulation System :

- FM, FM-N : FM reactance modulation

- DV : GMSK reactance modulation

Max. Frequency Deviation : ±5.0kHz/±2.5kHz (FM/FM-N)

Spurious Emission : Less than -60dBc

Microphone Impedance : 600Ω (8-pin modular jack)

RECEIVER

Intermediate Frequencies :

- A Band : 38.85MHz/450kHz (1st /2nd)

- B Band : 46.35MHz/450kHz (1st/2nd)

Sensitivity :

- FM/FM-N (12dB SINAD) : Less than 0.18µV (amateur bands only)

- DV (1% BER) : Less than 0.28µV

Receiver Sensitivity (Not guaranteed, for your reference only. Except amateur bands.) :

*FM/FM-N (12dB SINAD) :

- 137-159.995MHz Less than 0.32μV

- 160-174.000MHz Less than 0.56μV

- 375-399.995MHz Less than 0.56μV

- 400-499.995MHz Less than 0.32μV

- 500-550.000MHz Less than 0.56μV

*AM (10dB S/N) : 118-136.9916MHz Less than 1μV

Squelch Sensitivity : Less than 0.13μV (at threshold)

Selectivity :

- FM : More than 60dB

- FM-N : More than 55dB

- DV : More than 50dB

Spurious and Image Rejections :

- A Band : More than 60/55dB (VHF/UHF)

- B Band : More than 60/60dB (VHF/UHF)

Audio Output Power : More than 2.0W (with 8Ω load, 10% distortion)

External Speaker Connector : 2-condcutor 3.5 (d) mm (1/8")/8Ω

===========================================================
