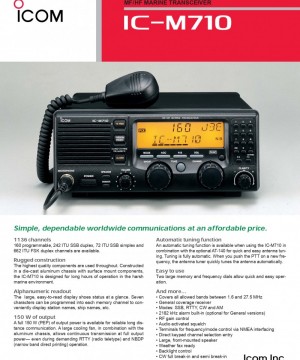

ICOM IC-M710 Marine SSB MF/HF Marine Transceiver

ICOM IC-M710 Marine SSB MF/HF Marine Transceiver

============================================================

Features

·         Covers all allowed bands between 1.6 and 27.5 MHz

·         General coverage receiver

·         Modes: SSB, RTTY, CW and AM

·         2182 kHz alarm built-in (optional for General versions)

·         RF gain control

·         Audio activated squelch

·         Terminals for frequency/mode control via NMEA interfacing

·         Direct keypad channel selection entry

·         Large, front-mounted speaker

·         Direct keypad channel selection entry

·         Weather fax ready

·         Backlight control

·         CW full break-in and semi break-in

============================================================

Specifications

GENERAL

Frequency Coverage :

- Receive : 500 kHz–29.9999 MHz

- Transmit* : 1.6–27.5 MHz

*Restrictions may apply depending on version.

Mode (Varies with Version) : J3E (USB), H3E, J2B (AFSK), F1B (FSK) R3E, A1A (CW). (available modes may differ depending on version)

Number of Channels : 1136 (max.) (160 programmable; 242 ITU SSB duplex; 72 ITU, SSB simplex; 662 ITU FSK duplex)

Antenna Impedance : 50 Ω (nominal)

Usable Temperature Range : -30°C to +60°C

Freq. Stability : ±10 Hz (–30 to +60°C; –22 to +140°F; ±20 Hz above 15 MHz for General and Marine versions)

Power Supply Requirement : 13.6 V DC ±15% (negative and floating grounds are available depending on version)

Current Drain (at 13.8 V DC) :

- Transmit (max. output power) : 30 A

- Receive (max. audio output) : 2.5 A (negative ground type), 3.0 A (floating ground type)

Dimensions (W x H x D, projections not included) : 291.4 × 116.4 × 315 mm

Weight (approximately) : 7.9 kg (negative ground type), 8.1 kg (floating ground type)

TRANSMITTER

Output Power :

- U.S.A. version : 150, 60, 20 W PEP (selectable), (60, 20 W only for 25 MHz band)

- Europe version : 150, 60 W PEP (selectable) (60 W only for 25 MHz band)

Spurious Emission : –65 dB (USA version); -60 dB (Europe version)

Unwanted Sideband Suppression : 70 dB typical

Carrier Suppression : 40 dB

Unwanted Sideband Suppression : 55 dB

Microphone Impedance : 600 Ω

RECEIVER

Sensitivity :

*J3E, R3E, J2B, F1B, A1A (for 12 dB SINAD) :

- 0.5 μV (1.8–29.9999 MHz)

- 1 μV (1.6–1.7999 MHz)

- 6.3 μV (0.5–1.5999 MHz)

*H3E (for 10 dB S/N) :

- 3.2 μV (1.8–29.9999 MHz)

- 6.3 μV (1.6–1.7999 MHz)

- 32 μV (0.5–1.5999 MHz)

Spurious Rejection Ratio : 70 dB (1.6–29.9999 MHz)

Audio Output Power : 4.5 W at 10% distortion with a 4 Ω load

Audio Output Impedance : 4 to 8 Ω

Clarity Variable Range : ±150 Hz

===========================================================
