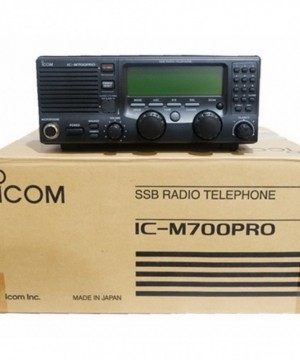

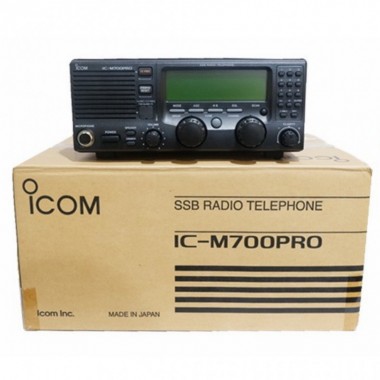

ICOM IC-M700PRO Marine SSB Radio Telephone

ICOM IC-M700PRO Marine SSB Radio Telephone

============================================================

Features

·         Automatic antenna tuner, the AT-140, is available to match the transceiver to your antenna

·         Wide band, general coverage receive — 0.5 to 29.9999 MHz

·         Channel/frequency knob allows the user to tune specific frequencies around the memory channel

·         NMEA plus 2 DIN connectors are available for external equipment connection, such as a linear amplifier, FSK terminal, E-mail modem, etc.

·         Optional 2-tone alarm function (UT-95 2-TONE ALARM UNIT required) provides simple transmission of emergency signals

·         NMEA0813 interface included

============================================================

Specifications

GENERAL

Frequency Coverage :

- Receive : 500kHz – 29.999MHz

- Transmit : 1.6 – 2.9999MHz, 4.0 – 4.9999MHz, 6.0 – 6.9999MHz, 8.0 – 8.9999MHz, 12.0 – 13.9999MHz, 16.0 – 17.9999MHz, 18.0 – 19.9999MHz, 22.0 – 22.9999MHz, 25.0 – 27.5000MHz

Mode : USB, AM, CW, FSK and AFSK

Number of Channels : 150 (max.; 3 groups of 50 channels each)

Antenna Connector : SO-239 (50 Ω)

Power Supply Requirement : 13.6 V DC ±15%

Current Drain (at 13.8 V DC) :

- TX Max. Power : 30 A

- RX Max. Audio : 2.5 A

Usable Temperature Range : –30°C to +60°C

Frequency Stability : ±10 Hz (0.5–14.9999 MHz), ±20 Hz (15–29.9999 MHz)

Dimensions (W x H x D, projections not included) : 291.4 × 116.4 × 315 mm

Weight (approximately) : 7.9 kg

Remote Connector : NMEA D-Cub 9-Pin (Female)

ACC 1 Connector : DIN 8-Pin (Female)

ACC 2 Connector : DIN 7-Pin (Female)

Supplied Accessories : Hand microphone, DC power cable, ACC plugs, Mounting bracket kit, Microphone hanger, Speaker plug, Spare fuses

TRANSMITTER

Output Power : 150 W PEP (below 24 MHz), 60 W PEP (above 24 MHz)

Spurious Emission : –75 dB typical

Unwanted Sideband Suppression : 70 dB typical

Carrier Suppression : 65 dB typical

Microphone Impedance : 8-Pin Connector (600 Ω)

RECEIVER

Sensitivity :

*USB, CW, FSK, AFSK  (for 12 dB SINAD) :

- 6.3 μV (0.5–1.5999 MHz)

- 1 μV (1.6–1.7999 MHz)

- 0.35 μV typical (1.8–29.9999 MHz)

*AM (for 10 dB S/N) :

- 32 μV (0.5–1.5999 MHz)

- 6.3 μV (1.6–1.7999 MHz)

- 2.2 μV typical (1.8–29.9999 MHz)

Spurious Response Rejection Ratio : 80 dB typical (1.6–29.9999 MHz)

Audio Output Power (at 13.8 V DC) : 5.0 W typical at 10% distortion with a 4 Ω load

Clarity Variable Range : ±150 Hz

External Speaker Jack : 2-conductor 6.5 (d) mm (1⁄4")/4–8 Ω

===========================================================
