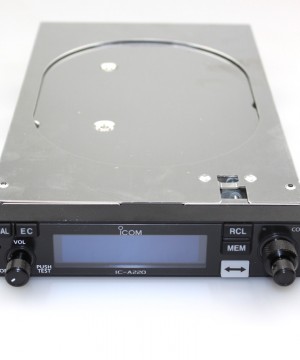

ICOM IC-A220 VHF Avionics Air Band Transceiver

ICOM IC-A220 VHF Avionics Air Band Transceiver

============================================================

Features

·         Automatic squelch function detects the signal level and automatically adjusts the squelch level

·         Built-in voice activated intercom function allows pilot and co-pilot to talk via the headset

·         Connect the A220 to an external GPS

·         Built-in DC-DC converter accepts a 12/24V DC power source

·         Automatic weather channel scanning and receive

·         Dualwatch and priority watch functions

·         One touch access to 121.5 MHz emergency frequency

·         Side tone function for monitoring your voice with headset

·         ANL (Automatic noise limiter) function reduces pulse type noise

·         Remote control capability

·         Dial lock and panel lock

·         Time-out-timer

·         Slim 34mm (1.34 inch) height can be installed in a limited panel space

·         D-Sub 25-pin industry standard connector for easy installation

·         Two types of menu mode; settings menu and configuration menu

============================================================

Specifications

GENERAL

Frequency Coverage :

- TX/RX (8.33 kHz spacing) : 118.000 – 136.992 MHz

- TX/RX (25 kHz spacing) : 118.000 – 136-975 MHz

- RX (Weather channel) : 161.650 – 163.275 MHz

Frequency Spacing : 8.33 kHz/25 kHz

Mode : AM (6K00A3E, 5K60A3E)

Frequency Stability : ±5 ppm

Operating Temperature : -10°C to +60°C

Antenna Impedance : 50 Ω

Number of Channels : 20 regular, 50 group memory, 10 GPS, 20 history, 10 weather

Power Supply Requirement : 13.8 V/27.5 V DC (Negative ground)

Dimensions (W x H x D, projections not included) : 160 × 34 × 271 mm

Weight (approximately) : 1.0 kg

Supplied Accessories : Mounting bracket kit

TRANSMITTER

Output Power : 8 W (Carrier power)

Spurious Emission : –60 dBc

Modulation Limiting : 70% (Maximum 98%)

Microphone Impedance 600 Ω

RECEIVER

Intermediate Frequencies : 38.85 MHz/450 kHz (1st/2nd)

Sensitivity :

- AM (6 dB S/N) : Less than 2 µV

- FM (12 dB SINAD) : Less than 1.4 µV

- FM (BW:15 kHz at 12 dB SINAD) : 0.5 μV (@ 28.0 – 29.7 MHz), 0.25 μV (@ 50 MHz band)

Spurious Response : More than 74 dBµ

Audio Output Power :

- External SP : 5 W with  a 4 Ω load

- Headphone : 60 mW with a 500 Ω load

===========================================================
