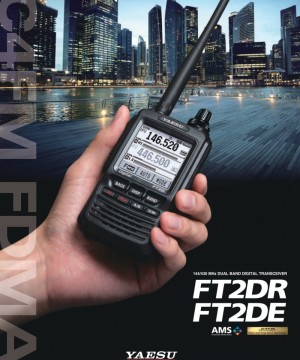

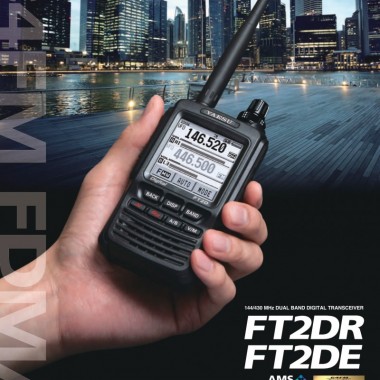

YAESU FT2DR 144/430MHz Dual Band Handheld Digital Transceiver

YAESU FT2DR 144/430MHz Dual Band Handheld Digital Transceiver

============================================================

Features

·         Large capacity 1327 channel memory and twenty-four 100 channel memory banks

·         Illuminated keyboard that will permit easy operation in dark environments

·         Three types of Vibrate alert function

·         High-Intensity Color LED and illumination function

·         Easy to use dual-axis knob allows convenient volume control and dial operation

·         Memory TAG up to 16 characters

·         DSQ (Digital Squelch) feature

·         Built-in CTCSS, DCS, new Pager function encode/decode enables Selective call features

·         Built-in highly accurate 24-hour Clock by GPS receiver

·         DTMF Encode

·         DTMF Memory

·         Built-in On/Off Timer, Automatic Power Off (APO) and Time-Out Timer (TOT)

·         Versatile Scanning for the Monitoring Enthusiasts

·         GPS data output feature

·         Data Terminal for data communication

·         External DC input

·         Useful Battery saving feature

·         Password Lock function

============================================================

Specifications

GENERAL

Frequency Range :

A (Main) Band RX :

- 0.5 – 1.8 MHz (AM Radio)

- 1.8 – 30 MHz (SW Radio)

- 30 – 88 MHz (50 MHz HAM)

- 88 – 108 MHz (FM Radio)

- 108 – 137 MHz (Air Band)

- 137 – 174 MHz (144 MHz HAM)

- 174 – 222 MHz (VHF Band)

- 222 – 420 MHz (GEN1)

- 420 – 470 MHz (430 MHz HAM)

- 470 – 800 MHz  (UHF Band)

- 800 – 999.99 MHz (GEN2)

B (Sub) Band RX :

- 108 – 137 MHz (Air Band)

- 137 – 174 MHz (144 MHz HAM)

- 174 – 222 MHz (VHF Band)

- 222 – 420 MHz (GEN1)

- 420 – 470 MHz (430 MHz HAM)

- 470 – 579.99 MHz (UHF)

TX :

- 144 – 146 MHz or 144 – 148 MHz

- 430 – 440 MHz or 430 – 450MHz

Channel Steps : 5, 6.25, 8.33, 9, 10, 12.5, 15, 20, 25, 50, 100 kHz (8.33 kHz : only for Air Band, 9 kHz : only for AM Radio)

Frequency Stability : ±2.5ppm -20°C to +60°C

Emission Type : F1D, F2D, F3E, F7W

Supply Voltage :

- Nominal : 7.2V DC, Negative Ground SBR-14LI

- Nominal : 7.4V DC, Negative Ground FNB-101LI

- Operating : 4 – 14V, Negative Ground (EXT DC JACK)

- 11 – 16V, Negative Ground (EXT DC JACK with SDD-13)

Current Consumption :

- 120 mA (Mono band Receive)

- 180 mA (Dual band Receive)

- 80 mA (Mono band Receive, Standby)

- 110 mA (Dual band Receive, Standby)

- 50 mA (Mono band Receive, Standby, Saver On “Save Ration 1:5”)

- 50 mA (Dual band Receive, Standby, Saver On “Save Ration 1:5”)

- +20 mA (GPS On)

- +20 mA (Digital)

- 90 mA (Mono band Receive AM/FM Radio)

- 400 µA (Auto Power Off)

- 1.6 A (5W TX, 144 MHz 7.2V DC)

- 1.8 A (5W TX, 430 MHz 7.2V DC)

Operating Temperature : -20°C to +60°C

Case Size :

- 62 (W) x 110 (H) x 32.5 (D) mm (w/SBR-14LI, w/o knob, antenna & belt clip)

- 62 (W) x 110 (H) x 27 (D) mm (w/o SBR-14LI, knob, antenna & belt clip)

Weight (approx.: : 310g w/SBR-14LI, antenna

Included : Battery Charger (SAD-14B), Lithium Ion Battery Packs 2200mAh (SBR-14LI), Belt Clip, Antenna

TRANSMITTER

RF Power Output : 5W (@ 7.2V or EXT DC)

Modulation Type :

- F1D, F2D, F3E : Variable Reactance Modulation

- F7W : 4FSK (C4FM)

Spurious Emission :

- At least 60 dB below (@ TX Power Hi, L3)

- At least 50 dB below (@ TX Power L2, L1)

RECEIVER

Circuit Type :

- AM, NFM : Double-Conversion Super heterodyne

- AM/FM : Direct-Conversion

Intermediate Frequencies :

- 1st : 47.25 MHz (AM, NFM A Band)

- 1st : 46.35 MHz (AM, NFM B Band)

- 2nd : 450 kHz (AM, NFM)

Sensitivity :

- 3 μV for 12 dB SN (0.5 – 30 MHz, @AM)

- 0.35 μV TYP for 12 dB SINAD (30 – 54 MHz, @NFM)

- 1 μV TYP for 12 dB SINAD (54 – 88 MHz, @NFM)

- 1.5 μV TYP for 12 dB SINAD (88 – 108 MHz, @WFM)

- 1.5 µV TYP fo 10 dB SN (108 – 137 MHz, @AM)

- 0.2 µV for 12 dB SINAD (137 – 140 MHz, @NFM)

- 0.16 µV for 12 dB SINAD (140 – 150 MHz, @NFM)

- 0.2 µV for 12 dB SINAD (150 – 174 MHz, @NFM)

- 1 µV for 12 dB SINAD (174 – 222 MHz, @NFM)

- 0.5 µV for 12 dB SINAD (300 – 350 MHz, @NFM)

- 0.2 µV for 12 dB SINAD (350 – 400 MHz, @NFM)

- 0.18 µV for 12 dB SINAD (400 – 470 MHz, @NFM)

- 1.5 µV for 12 dB SINAD (470 – 540 MHz, @NFM)

- 3 µV TYP for 12 dB SINAD (540 – 800 MHz, @NFM)

- 1.5 µV TYP for 12 dB SINAD (800 – 999 MHz, @NFM, Cellular Blocked)

- 0.19 µV TYP for BER 1% (Digital Mode)

Selectivity : NFM, AM 12 kHz / 35 kHz (-6 dB / -60 dB)

AF Output :

- 700 mW (8 Ω for 10 % THD) Internal Speaker

- 300 mW (8 Ω for 10 % THD) External Speaker Jack

===========================================================
