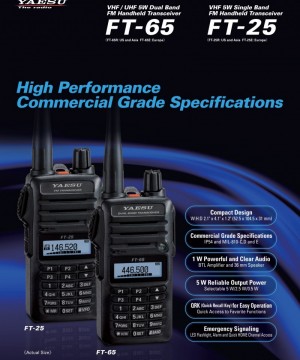

YAESU FT-65R VHF/UHF 5W Dual Band FM Handheld Transceiver

YAESU FT-65R VHF/UHF 5W Dual Band FM Handheld Transceiver

============================================================

The FT-65 are compact FM transceivers, ruggedly constructed to meet commercial grade specifications. They are packed with the high performance and valuable features demand by Radio operators around the world.

Features

·         Compact Design, Measuring W52.5 x H104.5 x D31mm

·         5 Watts of Reliable RF Power within a Compact body

·         Three Selectable TX Power settings : 5W(High)/2.5W(Middle)/0.5W(Low)

·         One Watt Powerful Audio Output and Clear Audio from the 36mm Front Speaker

·         Rugged Construction : Meets IP54 Rating (Dust/Water protection), MIL-810-C, D and E

·         QRK (Quick Recall Keys) Four User Programmable Keys for Quick Access to favorite functions

·         Over 9 hours Operating time with Supplied 1,950 mAh Li-Ion Battery pack

·         Optional High-capacity 2,500 mAh Li-Ion Battery Pack (SBR-26LI) provides over 11.5 hours of Extended Operating Time

·         3.5-Hour Rapid Charger (SBH-22) Included (Using SBR-25LI)

·         Large White LED flashlight, Alarm and Quick Home Channel Access for Emergency Signaling

·         Versatile Scanning Capabilities : (Programmed VFO Scan, Memory Scan, Priority Channel Scan, Weather alert Scan)

·         WX Channels with “Severe Weather” alert (US Version)

·         VOX Operation with Optional VOX Earpiece Microphone (SSM-512B)

·         PC Programmable with Optional Programming Cable (SCU-35)

·         Transceiver-to-Transceiver Cloning with Optional Cloning Cable (SCU-36)

·         FM Broadcast Receiver Equipped

·         ARTS (Automatic Range Transponder System)

·         DTMF Operation

·         CTCSS/DCS Operation

·         Busy Channel Lock Out (BCLO)

·         Battery Saver function

·         Automatic Power Off (APO) feature

·         Transmitter Time Out Timer (TOT)

============================================================

Specifications

GENERAL

Frequency Range :

- RX : 136 – 174MHz; 400 – 480MHz

- TX : 136 – 174MHz; 400 – 480MHz

- FM Broadcast : 65 – 108MHz

Channel Steps : 5/10/12.5/15/20/25/50/100kHz

Frequency Stability : ±5ppm -10°C to +60°C

Emission Type : F2D, F3E

Antenna Impedance : 50 Ohms

Supply Voltage : Nominal : 7.4V DC, Negative Ground

Current Consumption :

- 205mA (Receive) 200mW Output

- 100mA (Standby, Saver Off)

- 18mA (Standby, Saver On)

- 4mA (Auto Power Off)

- 1.7A (5W TX, 430MHz) 7.4V DC

Operating Temperature : -20°C to +60°C

Case Size : 52.5 (W) x 104.5 (H) x 31 (D) mm, without Knob and Antenna

Weight (Approx.) : 260g with SBR-28LI and Antenna

Included : Li-ion battery 7.4V 1,950mAH (SBR-25LI), Rapid Charge (SB-22), AC Adapter (SAD-20U), Belt Clip (SHB-18), Antenna

TRANSMITTER

RF Power Output : 5W (High) / 2.5W (Middle) / 0.5 (Low) @ 7.4V

Modulation Type : Variable Reactance

Maximum Deviation : ±5.0kHz

Spurious Emission :

- At least 60dB down (@ High and Middle power)

- At least 50dB down (@ Low Power)

Microphone Impedance : 2k Ohms

RECEIVER

Circuit Type : Direct-Conversion

Sensitivity : 0.2µV for 12dB SINAD (420 – 470MHz, NFM)

Selectivity : 12kHz / 35kHz (-6dB/-60dB)

AF Output : MAX Power 1W @ 16 Ohms, 0.8W @ 16 Ohms for 10% THD

===========================================================
