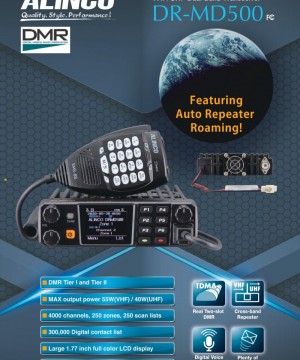

Alinco DR-MD500 VHF/UHF DMR Dual Band Transceiver

Alinco DR-MD500 VHF/UHF DMR Dual Band Transceiver

============================================================

Features

·         4000 Channels, 250 Zones, 250 Scan Lists

·         Display DMR ID, Call Sign, Name and Geographical Info

·         Allow CSV Export/import of Setting Parameters

·         Easy import of DMR Contact Database (Entire World Wide)

·         Single or Dual Channel Selectable

·         FM Broadcasting Receiver with 100 Memory Channels and VFO

·         Manually Programmable Side and Hot Keys

·         Automatic Date and Time Calibration by GPS

·         X-Band Repeat, Analog Uplink/Digital Downlink or Vice Versa

·         Emergency Alarm

·         Mixed Mode Operation : Automatically Detects and Switches Between Analog and Digital Modes Depending on The Signal Received

·         Recording Time 4 Hours

Digital Mode

·         10.000 Talk Groups, 250 Radio ID, 300.000 Contact Lists

·         Display The Caller ID and Name

·         32 Preset Encryption Codes Plus 255 Preset AES 256bit Encryption Codes

·         Selective Calls Including Individual, Group or All

·         Digital Monitor Function to Receive Signals Without Matching ID or Color Codes

·         Plenty of Text Messages 100 Pre-Programmable Short Messages of Up to 200 Characters Each, Capable of Editing Through the Keys Without Using a PC

Analog Mode

·         Variety of Signaling; CTCSS/DCS/DTMF/2-TONE/5-TONE Encode and Decode

·         Four Different Tone-Burst Tones

·         Programmable Auto Repeater Shift in VFO Mode

·         Kill & Stun Functions

============================================================

Specifications

GENERAL

Frequency Range : TX/RX 136 – 174MHz / 400 – 480MHz; RX only 76 – 108MHz

Number of Channels : 4000ch

Zones per Radio : 250 zone (MAX 250ch/zone)

Channel Spacing : Analog 12.5/25kHz; Digital 12.5kHz

Operating Voltage : 13.8V DC nominal ±15%

Operating Temperature Range : -20°C to +60°C

Frequency Stability : ±2.0ppm

Antenna Impedance : 50Ω

Dimensions (W x H x D Approx.) with battery pack : 141 x40 188mm

Weight (Approx.) : 1.04 kg

Included : Microphone with DTMF keyboard (EMS-88), Mobile Bracket (ADFM-78), DC Cable (ADU-A38) with Fuse Holder, Spare Fuses (15A) 2pcs, Hardware Kit for Bracket, Mic Hanger, PC Interface Cable (ERW-21)

TRANSMITTER

RF Power Output : VHF : 55W (144-148MHz)/50W/25W/10W/1W; UHF : 40W/25W/10W/1W

Spurious Emission : Less than 1GHz : -36dBm; More than 1GHz : -30dBm

FM Hum & Noise (Analog) : 25kHz : 40dB; 12.5kHz : 36dB

Modulation : Analog : 16K0F3E/11K0F3E; Digital : 7K60FXD/7K60FXE

RECEIVER

Sensitivity (Analog/12dB SINAD) : 25kHz : 0.25µV; 12.5kHz : 0.35µV

Sensitivity (Digital/BER) : 5% : 0.3µV; 1% : 0.7µV

FM Hum & Noise (Analog) : 25kHz : 45dB; 12.5kHz : 40dB

Audio Distortion : Less than 5%

Audio Output : 2W/8Ω

===========================================================
