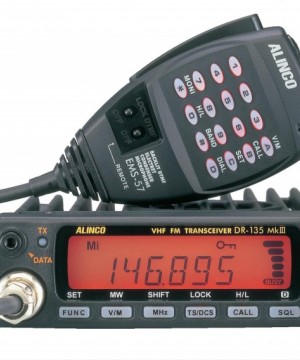

ALINCO DR-135 MKIII VHF Mobile/Base FM Transceiver

ALINCO DR-135 MKIII VHF Mobile/base FM Transceiver

============================================================

Features

·         Huge Alphanumeric Display and Rugged Construction

·         Conventional or Narrow FM Modes

·         Variety of Scan Modes

·         Multi-Function, Backlit Microphone Enables Direct Frequency Entry

·         3 Selectable Output Power Levels

============================================================

Specifications

GENERAL

Frequency Range :

- TX/RX : 146-174 MHz

- RX only : 118-135.995MHz (AM), 236-273.995MHz (FM)

Operating Mode : 16K03FE (FM), 8K50F3E (NFM)

Memory Channel : 100

Frequency Stability : ±2.5ppm

Rated Voltage : 13.8VDC ±15%

Current : 12A max.

Operating Temperature : -10°C to 60°C

Dimensions : 142 (W) x 40 (H) x 174 (D) mm

Weight : Approx. 1.0kg

Power Output : 50W (HI)/20W (MID)/approx. 5W (LOW)

Maximum Frequency Deviation : ±5kHz/±2.5kHz (Narrow Mode)

Sensitivity : -12dBµ (0.25µV) or less for 12dB SINAD

Squelch Sensitivity : -16.0dBµ (0.1µV)

Selectivity (-6dB) : 12kHz or More/6kHz or More (Narrow Mode)

Selectivity (-60dB) : 28kHz or More/16kHz or More (Narrow Mode)

Audio Output : 2.0W (8Ω, 10%THD)

Included : DTMF Microphone (EMS-57), Bracket (ADFM-78), DC Power Cable (ADU-A38), Alarm Cable (ADALM-135)

===========================================================
