ALINCO DR-438 UHF Mobile/Base Transceiver

ALINCO DR-438 UHF Mobile/base Transceiver

============================================================

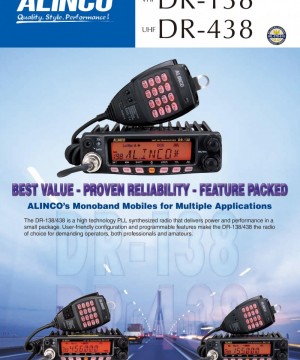

The DR-138/438 is a high technology PLL synthesized radio that delivers power and performance in a small package. User-friendly configuration and programmable features make the DR-138/438 the radio of choice for demanding operators, both professionals and amateurs.

Features

·         3 Selectable/Programmable Output Power Levels

·         PC-Programmable 200ch

·         Alphanumeric Name Tags

·         Voice Compander (Reduce Noise & Enhance Audio Clarity)

·         Wide Variety of Selective Calling Features are Built-In : 2-Tone, 5-Tone, 50 CTCSS, 114 DCS, 4 Tone-Burst Tones and DTMF/ANI Decode

·         Radio Stun/Kill/Revive Functions to Protect Your Communications Security

·         Large, Bright LCD and Easy-to-Operate Backlit Keys

·         Multi-Function, Backlit Microphone Enables Direct Frequency Entry & More From Keypad

·         Various Scan Modes, Key Lock, Wide/Narrow Operations and More at No Extra Costs!

============================================================

Specifications

GENERAL

Frequency Range : TX/RX : 400.000 – 469.9975MHz

Number of Channels : 200 Channels

Channel Spacing : 25kHz (Wide), 20kHz (Middle), 12.5kHz (Narrow)

Channel Step : 2.5kHz, 5kHz, 6.25kHz, 8.33kHz, 10kHz, 12.5kHz, 15kHz, 20kHz, 25kHz, 30kHz, 50kHz

Operating Voltage : 13.8V DC ±15%

Squelch : Carrier/CTCSS/DCS/5 Tone/2 Tone/DTMF

Frequency Stability : ±2.5ppm

Operating Temperature : -20°C - +60°C

Dimension : 145mm (W) x 47mm (H) x 190mm (D) approx.

Weight (approx.) : 1.2kg

Included : DC Power Cable (15A Fuse, ADU A38), Mobile Bracket (ADFM78), Back-Lit Microphone with Keypad (EMS-74)

TRANSMITTER

Power Output : 45W / 25W /10W

Modulation : 16KØF3E (Wide), 11KØF3E (Narrow)

Adjacent Channel Power : ≥70dB (Wide), ≥60dB (Narrow)

Hum & Noise : ≥40dB (Wide), ≥36dB (Narrow)

Spurious Emission : ≥60dB (Wide), ≥60dB (Narrow)

Frequency Deviation : +1 - -3dB (0.3 – 3kHz) (Wide), +1 - -3dB (0.3 – 2.55kHz) (Narrow)

RECEIVER

Sensitivity (12dB SINAD) : ≤0.25µV (Wide), ≤0.35µV (Narrow)

Adjacent Channel Selectivity : ≥70dB (Wide), ≥60dB (Narrow)

Intermodulation : ≥65dB (Wide), ≥60dB (Narrow)

Spurious Rejection : ≥70dB (Wide), ≥70dB (Narrow)

Audio Response : +1 - -3dB (0.3 – 3kHz) (Wide), +1 - -3dB (0.3 – 2.55kHz) (Narrow)

Hum & Noise : ≥45dB (Wide), ≥40dB (Narrow)

Audio Distortion : ≤5%

Audio Power Output : >2W @10%

===========================================================
