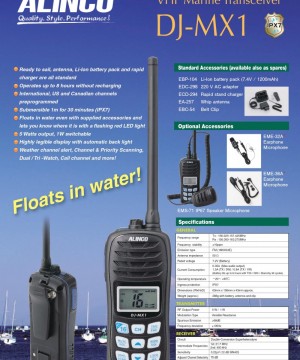

ALINCO DJ-MX1 Submersible VHF Marine Transceiver

ALINCO DJ-MX1 Submersible VHF Marine Transceiver

============================================================

Features

·         Ready to sail, antenna, Li-Ion battery pack and rapid charger are all standard

·         Operates up to 8 hours without recharging

·         International, US and Canadian channels preprogrammed

·         Submersible 1m for 30 minutes (IPX7)

·         Floats in water even with supplied accessories and lets you know where it is with a flashing red LED light

·         5 Watts output, 1W switchable

·         Highly legible display with automatic back light

·         Weather channel alert, Channel & Priority Scanning,

·         Dual / Tri -Watch, Call channel and more!

============================================================

Specifications

GENERAL

Frequency range

- TX : 156.025-157.425MHz

- RX : 156.050-163.275MHz

Frequency Stability : ±10ppm

Emission Type : FM (16K0G3E)

Antenna Impedance : 50Ω

Rated Voltage : 7.2V (Battery)

Current Consumption :

- 0.35A (Max audio output)

- 1.5A (TX / 5W) / 0.9A (TX / 1W)

- (Battery life up to 8 hours with TX5 / RX5 / Stand-by 90 cycles)

Operating Temperature : -20 - +60°C

Ingress Protection : IPX7

Dimension (W x H x D) : 63 x 138 x 43 mm approx.

Weight (approx.) : 288g with battery, antenna and clip

Included : Whip Antenna (EA-257), Li-Ion Battery Pack (7.4V 1200mAh, EBP-104), Rapid Stand Charger (ECD-294), AC Adapter 220V (EDC-298), Belt Clip (EBC-54)

TRANSMITTER

RF Output Power : 5W / 1W

Modulation Type : Variable Reactance

Spurious Emission : ≥­68dB

Frequency Deviation : ± 5KHz

RECEIVER

Circuit : Double-Conversion Superheterodyne

Intermediate Frequencies :

- 1^st : 21.7MHz

- 2^nd : 450kHz

Sensitivity : 0.22μV (12 dB SINAD)

Adjacent Channel Selectivity : 70dB

Intermodulation Response : 68 dB

Audio Output : 0.5W ( 8‑10 %THD)

===========================================================
