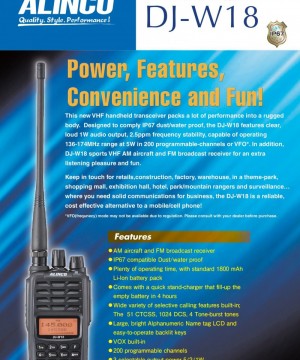

ALINCO DJ-W18 (136-174MHz) VHF FM Handheld Transceiver

ALINCO DJ-W18 (136-174MHz) VHF FM Handheld Transceiver

============================================================

This new VHF handheld transceiver packs a lot of performance into a rugged body. Designed to comply IP67 dust/water proof, the DJ-W18 features clear, loud 1W audio output, 2.5ppm frequency stability, capable of operating 136-174MHz range at 5W in 200 programmable-channels or VFO*. In addition, DJ-W18 sports VHF AM aircraft and FM broadcast receiver for an extra listening pleasure and fun.

Keep in touch for retails, construction, factory, warehouse, in a theme-park, shopping mall, exhibition hall, hotel, park/mountain rangers and surveillance. where you need solid communications for business, the DJ-W18 is a reliable, cost effective alternative to a mobile/cell phone!

Features

·         AM aircraft and FM broadcast receiver

·         IP67 compatible Dust/Water proof

·         Plenty of operating time, with standard 1800 mAh Li-Ion battery pack

·         Comes with a quick stand-charger that fill-up the empty battery in 4 hours

·         Wide variety of selective calling features built-in; The 51 CTCSS, 1024 DCS, 4 Tone-burst tones

·         Large, bright alphanumeric name tag LCD and easy-to-operate backlit keys

·         VOX built-in

·         200 programmable channels

·         3 selectable output power 5/2/1W

·         BCLO, DTMF Autodialer, Reverse, Talk-around, TOT functions and much more!

============================================================

General Specifications

RX Frequency Coverage :

- TX/RX : 136-174MHz

- RX only : FM radio (76 – 107.95MHz), AM (118 – 135.99MHz)

Mode : F3E(16K0F3E / 11K0F3E / RX only WFM, AM)

Frequency Stability : ±2.5ppm

Power Supply Requirement : 7.4V (Battery)

Current Drain (Approx.) : 1500mA TX / 300mA receive at Max audio output / 80mA squelched

Usable Temperature Range : -20°C - 55°C

Channel Step : 2.5, 5, 6.25, 10, 12.5, 20, 25, 30 and 50 KHz

Dimensions : 118 x 59 x 38 mm (with battery pack)

Weight : approx. 230g inclusive of battery pack and antenna

Include : Whip Antenna (EA-250), Li-ion Battery Pack (EBP-101 Li-ion 7.4V 1800mAh), Rapid Charger Stand (EDC-219), AC Adapter (EDC-220), Belt Clip (EBC-51)

TRANSMITTER

Output Power (Approx) : Approx. 5W / 2W / 1W

Frequency Deviation : ± 5kHz / ± 2.5kHz

Spurious Emission : Less than -27dBm

RECEIVER

Receiver System : Double Conversion

Sensitivity (12dB SINAD Wide/Narrow) : Wide -12dBµ / Narrow -9dBµ

Adjacent Channel Selectivity : Wide More than 65dB, Narrow More than 60dB

Audio output power : 1W (10% distortion)

===========================================================
