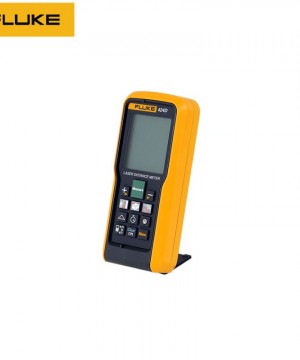

Fluke 424D Laser Distance Meter

Fluke 424D Laser Distance Meter

============================================================

Features

·         Versatile laser distance meter that instantly measures up to 100 meters (330 feet) with one-button point-and-click operation

·         Quickly calculates area (square feet/meters) and volume

·         Includes 180° inclination sensor for leveling and height tracking

·         Offers enhanced Pythagoras calculation for determining distance indirectly from three other measurements

============================================================

Specifications

Distance Measurement

Typical measuring tolerance : ±1.0 mm 3

Maximum measuring tolerance : ±2.0 mm 3

Range At Leica Target Plate GZM26 : 100 m / 330 ft

Typical range : 80 m / 260 ft

Range at unfavorable condition : 60 m / 195 ft

Smallest unit displayed : 6 / 30 / 60 mm (10 / 50 / 100 m)

Ø Laser point at distances : 6 / 30 / 60 mm (10 / 50 / 100 m)

Tilt Measurement

Measuring tolerance to laser beam : ±0.2°

Measuring tolerance to housing : ±0.2°

Range : 360°

General

Laser class : 2

Laser type : 635 nm, < 1 mW

Protection class : IP54

Automatic laser off : After 90 seconds

Automatic power off : After 180 seconds

Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03 : Up to 5,000 measurements

Size (L x W x D) : 127 x 56 x 33 mm

Weight (with batteries) : 158 g

Temperature range Storage operation : -25°C to +70°C (-13°F to +158°F). -10°C to +50°C (14°F to +122°F)

Calibration cycle : Tilt and compass

Maximum altitude : 3000 m

Maximum relative humidity : 85% at 20°F to 120°F (-7°C to 50°C)

Safety : IEC Standard No. 61010-1:2001. EN60825-1:2007 (Class II)

EMC : EN 55022:2010. EN 61000-4-3:2010. EN 61000-4-8:2010

Includes : Two AAA batteries, Users manual on CD, Quick reference guide, Vinyl carrying pouch, Lanyard

===========================================================
