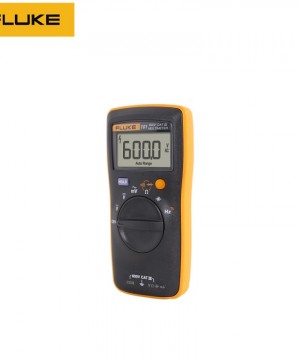

Fluke 101 Digital Multimeter

Fluke 101 Digital Multimeter

============================================================

Features

·         Basic dc accuracy 0.5%

·         CAT III 600 V safety rated

·         Diode and continuity test with buzzer

·         Small lightweight design for one-handed use

·         Rugged, durable design

·         Automatic shutdown

·         Battery is easy to replace

============================================================

Specifications

V AC (40-500Hz) :

- Range : 600 V

- Resolution : 0.1 mV

- Accuracy : 1.0% + 3

V DC :

- Range : 600 V

- Resolution : 0.001 V

- Accuracy : 0.5% + 3

Resistance Ohms :

- Range : 40 MΩ

- Resolution : 0.1 Ω

- Accuracy : 0.5 %±3 digit

Capacitance

- Range : 1000 μF

- Resolution : 0.01 nF

Frequency (10 Hz – 100 kHz) :

- Range : 100 kHz

- Resolution : 0.01 Hz

Duty Cycle :

- Range : 0.1 % to 99.9 %

- Resolution : 0.1 %

General specifications

CAT Rating : CAT III 600 V

Auto Shutoff : Y

Continuity : Y

Capacitor : 100.0 μF

Frequency : 100.0 kHz

Hold : No

Duty Cycle : Yes

Size : 130 mm x 65 mm x 27mm

Weight : 160 g

Battery : Two AAA

Environmental Specifications

Operating Temperature : 0 °C to +40 °C

Storage Temperature : -30 °C to +60 °C

Operating Humidity, 40 MΩ : 80% RH 10 °C to 30 °C, 70% RH 30 °C to 40 °C

Operating Altitude : 2,000 meters

Storage Altitude : 12,000 meters

IP Rating : IP 40 per IEC 60529

Vibration Requirements : MIL-PRF-28800F, Class 2

Drop Test Requirements : -10°C and 1 meter to surface, per IEC-61010-1, and Fluke SOP 39.1 for portable Hand-held equipment. Shipping container drop per Fluke SOP 39.

EMI, RFI, EMC : Must meet all applicable requirements in IEC/EN 61326-1

Absorption/Corrosion : Per Fluke SOP 39.1

Temperature Coefficients : Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 ºC

Includes : -

===========================================================
