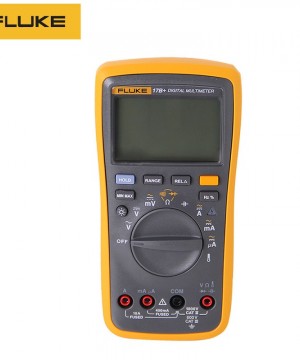

Fluke 17B+ Digital Multimeter

Fluke 17B+ Digital Multimeter

============================================================

Features

·         600 V Cat III safety rating

·         50% bigger display with bright white backlight

·         Over-voltage indicator

·         Frequency and temperature measurement

·         Voltage, resistance, continuity, capacitance

·         Input terminal for ac and dc current measurements to 10 A current

·         Diode test, data hold

============================================================

Specifications

AC volts (40 Hz to 500Hz) :

- Range : 1000 V

- Resolution : 0.001 V

- Accuracy : 1.0% + 3

DC volts :

- Range : 1000 V

- Resolution : 0.001 V

- Accuracy : 0.5% + 3

AC millivolts :

- Range : 400 mV

- Resolution : 0.1 mV

- Accuracy : 3.0% + 3

DC millivolts :

- Range : 400 mV

- Resolution : 0.1 mV

- Accuracy : 1.0% + 10

Diode test :

- Range : 2V

- Resolution : 0.001 V

- Accuracy : 10%

Resistance (Ohms) :

- Range : 40 MΩ

- Resolution : 0.1 Ω

- Accuracy : 0.5% + 3

Capacitance :

- Range : 1000 μF

- Resolution : 0.01 nF

- Accuracy : 2% + 5

Frequency Hz (10 Hz – 100 kHz) :

- Range : 100 kHz

- Resolution : 0.01 Hz

- Accuracy : 0.1% + 3

Duty Cycle :

- Range : 1% to 99%

- Resolution : 0.1%

- Accuracy : 1% typical

AC current μA (40 Hz to 400 Hz) :

- Range : 4000 μA

- Resolution : 0.1 μA

- Accuracy : 1.5% + 3

AC current mA (40 Hz to 400 Hz) :

- Range : 400 mA

- Resolution : 0.01 mA

- Accuracy : 1.5% + 3

DC current μA :

- Range : 4000 μA

- Resolution : 0.1 μA

- Accuracy : 1.5% + 3

DC current mA :

- Range : 400 mA

- Resolution : 0.01 mA

- Accuracy : 1.5% + 3

DC current A :

- Range : 10 A

- Resolution : 0.001 A

- Accuracy : 1.5% + 3

Backlight : Yes

AC volts :

- Overload protection : 1000 V

- Input impedance (Nominal) : >10 MΩ <100 pF

- Common mode rejection ratio : >60 dB at dc, 50 Hz or 60 Hz

AC millivolts :

- Overload protection : 400 mV

- Input impedance (Nominal) : >1MΩ, <100 pF

- Common mode rejection ratio : >80 dB at 50 Hz or 60 Hz

DC volts :

- Overload protection : 1000 V

- Input impedance (Nominal) : >10 MΩ <100 pF

- Common mode rejection ratio : >100 dB at dc, 50 Hz or 60 Hz

- Normal mode rejection ratio : >60 dB at 50 Hz or 60 Hz

DC millivolts :

- Overload protection : 400 mV

- Input impedance (Nominal) : >1MΩ, <100 pF

- Common mode rejection ratio : >80 dB at 50 Hz or 60 Hz

General specifications

Maximum voltage between any terminal and earth ground : 1000 V

Display (LCD) : 4000 counts, updates 3/sec

Battery type : 2 AA, NEDA 15A, IEC LR6

Battery life : 500 hours minimum (50 hours in LED Test mode without load. The hours with load depends on the type of LED under test.)

Temperature

- Operating : 0 °C to 40 °C

- Storage : -30 °C to 60 °C

Altitude : 2000 m, Storage : 12,000 m

Temperature coefficient : 0.1 X (specified accuracy) /°C (<18 °C or >28 °C)

Fuse protection for current inputs : 440 mA, 1000 V Fast Fuse, Fluke specified part only. 11A, 1000V Fast Fuse, Fluke specified part only.

Size (H x W x L) : 183 x 91 x 49.5 mm

Weight : 455 g

IP rating : IP 40

Safety : IEC 61010-1, IEC61010-2-030 CAT III 600 V, CAT II 1000 V, Pollution Degree 2

Electromagnetic environment : IEC 61326-1: Portable

Includes : TL75 test leads with two caps, 2 AA batteries, User’s manual

===========================================================
