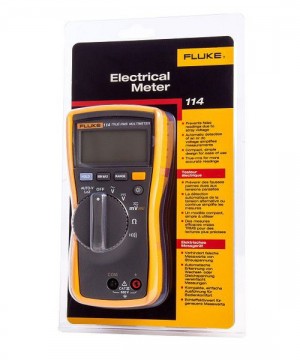

Fluke 114 Electrical Multimeter

Fluke 114 Electrical Multimeter

============================================================

Features

·         Ideal Digital Multimeter for “go/no-go” testing

·         Features AutoVolt automatic AC/DC voltage selection

·         Includes low input impedance to help prevent false readings due to ghost voltage

·         Presents a large white LED backlight for working in poorly lit areas

·         Measures resistance, continuity, frequency, and capacitance

·         Provides Min/Max/Average with elapsed time to record signal fluctuations

============================================================

Specifications

Maximum voltage between any terminal and earth ground : 600 V

Safety : IEC 61010-1: Pollution Degree 2. IEC 61010-2-033: CAT III 600V

Display :

- Digital : 6,000 counts, updates 4 per second

- Bar graph : 33 segments, updates 32 per second

Operating temperature : -10°C to + 50°C

Storage temperature : -40°C to + 60°C

Battery type : 9 volt Alkaline, IEC 6LR61

Battery life : 400 hours typical, without backlight

Accuracy specifications

DC millivolts :

- Range/resolution : 600.0 mV / 0.1 mV

- Accuracy : ± ([% of reading] + [counts]): 0.5% + 2

DC volts :

- Range/resolution : 6.000 V / 0.001 | V60.00 V / 0.01 | V600.00 V / 0.1 V

- Accuracy : ± ([% of reading] + [counts]): 0.5% + 2

Auto volts :

- Range/resolution : 600.0 V / 0.1 V

- Accuracy : 2.0% + 3 (DC, 45 Hz to 500 Hz). 4.0% + 3 (500 Hz to 1 kHz)

AC millivolts True RMS :

- Range/resolution : 600.0 mV / 0.1 mV

- Accuracy : 1.0% + 3 (DC, 45 Hz to 500 Hz). 2.0% + 3 (500 Hz to 1 kHz)

AC volts True RMS :

- Range/resolution : 6.000 V / 0.001 | V60.00 V / 0.01 | V600.0 V / 0.1 V

- Accuracy : 1.0% + 3 (DC, 45 Hz to 500 Hz). 2.0% + 3 (500 Hz to 1 kHz)

Continuity :

- Range/resolution : 600 Ω / 1 Ω

- Accuracy : Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.

Ohms :

- Range/resolution : 600.0 Ω / 0.1 Ω | 6.000 kΩ / 0.001 kΩ | 60.00 kΩ / 0.01 kΩ | 600.0 kΩ / 0.1 kΩ | 6.000 MΩ / 0.001 MΩ

- Accuracy : 0.9% + 1

- Range/resolution : 40.00 MΩ / 0.01 MΩ

- Accuracy : 5% + 2

Mechanical & General Specifications

Size : 167 x 84 x 46 mm

Weight : 550 g

Included : Holster, Installed 9 V battery, Test leads, User manual

===========================================================
