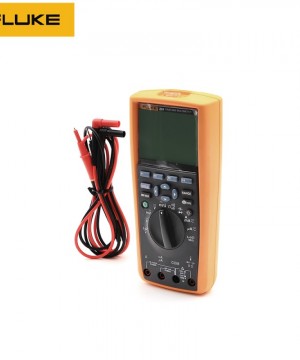

Fluke 289 True-RMS Data Logging Multimeter

Fluke 289 True-RMS Data Logging Multimeter

============================================================

Features

Equipped with new functionality

·         TrendCapture graphically displays logged data session to quickly determine whether anomalies may have occurred.

·         Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times.

·         Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy.

·         Low Pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment.

·         LoZ Volts. Low impedance voltage function for eliminating ghost voltages. Also recommended when testing for absence or presence of live power.

·         Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event.

·         Large 50,000 count, 1/4 VGA dot matrix display with white backlight.

·         Logging function with expanded memory for unattended monitoring of signals over time. Using on-board TrendCapture users can graphically review logged readings without needing a PC. Store up to 15,000 recorded events.

·         Save multiple logging sessions before PC download is necessary.

·         Two terminal 50 ohm range with 1 milliohm resolution, 10 mA source current. Useful for measuring and comparing differences in motor winding resistance or contact resistance.

·         On board help screens for measurement functions. Unsure about a function - go to that function and press the "i" button.

·         Real time clock for automatic time stamping of saved readings.

·         Relative mode to remove test lead resistance from low ohms or capacitance measurements.

·         True-RMS AC voltage and current for accurate measurements on non-linear signals.

·         Measure up to 10 A (20 A for 30 seconds).

·         100 mF capacitance range.

·         Peak capture to record transients as fast as 250 μs.

·         Premium test leads and alligator clips included.

·         Amp jack plugs included.

·         Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks.

·         FlukeView forms enable you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents.

============================================================

Specifications

Function

DC volts :

Range / resolution : 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V

Basic accuracy : 0.025%

AC volts               :

- Range / resolution : 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V

- Basic accuracy : 0.4% (True-RMS)

DC current :

- Range / resolution : 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A

- Basic accuracy : 0.05%

AC current :

- Range / resolution : 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A

- Basic accuracy : 0.6% (True-RMS)

Temperature (excluding probe) :

- Range / resolution : -200.0°C to 1350.0°C (-328.0°F to 2462.0°F)

- Basic accuracy : 1.0%

Resistance :

- Range / resolution : 50.000 Ω, 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ

- Basic accuracy : 0.05%

Capacitance :

- Range / resolution : 1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF

- Basic accuracy : 1.0%

Frequency :

- Range / resolution : 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz

- Basic accuracy : 0.005%

Connectivity : Optional infrared connector via Fluke ir3000 FC

General Specifications

Maximum voltage between any terminal and earth ground : 1000 V

Battery type : 6 AA alkaline batteries, IECLR6

Battery life : 100 hours minimum, 200 hours in logging mode

Temperature :

- Operating : -20°C to 55°C

- Storage : -40°C to 60°C

Relative humidity : 0 to 90% (0 to 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C)

Electromagnetic compatibility : EMC EN61326–1

Vibration : Random vibration per MIL-PRF-28800F Class 2

Shock : 1 meter drop per IEC/EN 61010–1 3rd Edition

Size (H x W x L) : 22.2 x 10.2 x 6 cm

Weight : 870.9 g

Multiple on screen displays : Yes

True-RMS AC bandwidth : 100 kHz

dBV/dBm : Yes

DC mV resolution : 1 μV

Megohm range : Up to 500 MΩ

Conductance : 50.00 nS

Continuity beeper : Yes

Battery/fuse access : Yes/Yes

Elapse time clock : Yes

Time of day clock : Yes

Min-max-avg : Yes

Duty cycle : Yes

Pulse width : Yes

Isolated optical interface : Yes

Auto/touch hold : Yes

Reading memory : Yes

Log to PC : Yes

Interval/event logging : Yes

Logging memory : Up to 15,000 readings

Wireless connectivity (optional) : Yes

Included : 289 True-RMS Industrial Logging Multimeter, TL71 Test Leads, AC175 Alligator Clips, Batteries – 6 AA Installed

===========================================================
