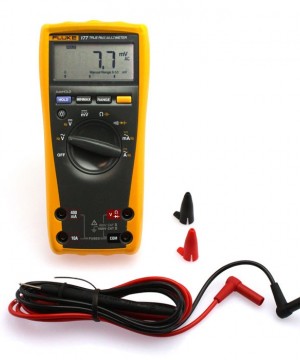

Fluke 177 True-RMS Digital Multimeter

Fluke 177 True-RMS Digital Multimeter

============================================================

Features

·         True-RMS digital multimeter with the features professional technicians prefer

·         Increases productivity with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording

·         Measures AC and DC voltage to 1000 V

·         Delivers accurate True-RMS AC current and voltage plus frequency, capacitance, resistance, continuity and diode measurements

·         Safety rated CAT III 1000 V, CAT IV 600 V

============================================================

Specifications

Voltage DC :

- Accuracy : ±(0.09% + 2)

- Max. resolution : 0.1 mV

- Maximum : 1000 V

Voltage AC :

- Accuracy : ±(1.0% + 3)

- Max. resolution : 0.1 mV

- Maximum : 1000 V

Current DC :

- Accuracy : ±(1.0% + 3)

- Max. resolution : 0.01 mA

- Maximum : 10 A

Current AC :

- Accuracy : ±(1.5% + 3)

- Max. resolution : 0.01 mA

- Maximum : 10 A

Resistance :

- Accuracy : ±(0.9% + 1)

- Max. resolution : 0.1 Ω

- Maximum : 50 MΩ

Capacitance :

- Accuracy : ±(1.2% + 2)

- Max. resolution : 1 nF

- Maximum : 10,000 µF

Frequency :

- Accuracy : ±(0.1% + 1)

- Max. resolution : 0.01 Hz

- Maximum : 100 kHz

Environmental Specifications

Operating temperature : -10°C to +50°C

Storage temperature : -30°C to +60°C

Humidity (without condensation) : 0% – 90% (0°C – 35°C). 0% – 70% (35°C – 50°C)

Safety Specifications

Overvoltage category : EN 61010–1 to 1000 V CAT III. EN 61010–1 to 600 V CAT IV

Agency approvals : UL, CSA, TÜV listed and VDE Pending

Mechanical and General Specifications

Size : 43 x 90 x 185 mm

Weight : 420 g

Battery life : Alkaline ~200 hours typical, without backlight

Included : Installed 9V battery, Test lead, User manual

===========================================================
