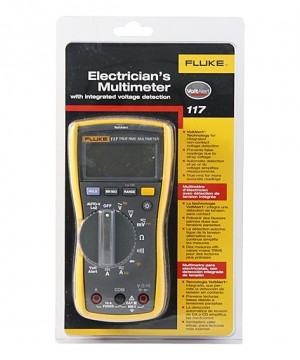

Fluke 117 Electrician's Multimeter with Non-Contact Voltage

Fluke 117 Electrician's Multimeter with Non-Contact Voltage

============================================================

Features

·         Compact, true-rms digital multimeter for electricians

·         Includes multimeter, 4mm silicone test leads, holster and manual

·         Integrated non-contact voltage detection keeps you safe

·         Prevent false readings from ghost voltage with selectable low-impedance mode

============================================================

Specifications

Maximum voltage between any terminal and earth ground : 600 V

Safety : IEC 61010-1: Pollution Degree 2. IEC 61010-2-033: CAT III 600V

Fuse for A input : 11 A, 1000 V FAST Fuse (Fluke PN 803293)

Display : Digital: 6,000 counts, updates 4 per second

Bar graph : 33 segments, updates 32 per second

Operating temperature : -10°C to +50°C

Storage temperature : -40°C to +60°C

Battery type : 9 volt Alkaline, IEC 6LR61

Battery life : 400 hours typical, without backlight

Accuracy Specifications

DC millivolts :

- Range/resolution : 600.0 mV / 0.1 mV

- Accuracy : ±([% of reading] + [counts]): 0.5% + 2

DC volts :

- Range/resolution : 6.000 V / 0.001 V | 60.00 V / 0.01 V | 600.00 V / 0.1 V

- Accuracy : ±([% of reading] + [counts]): 0.5% + 2

Auto volts :

- Range/resolution : 600.0 V / 0.1 V

- Accuracy : 2.0% + 3 (DC, 45 Hz to 500 Hz). 4.0% + 3 (500 Hz to 1 kHz)

AC millivolts True RMS :

- Range/resolution : 600.0 mV / 0.1 mV

- Accuracy : 1.0% + 3 (DC, 45 Hz to 500 Hz). 2.0% + 3 (500 Hz to 1 kHz)

AC volts True RMS :

- Range/resolution : 6.000 V / 0.001 V | 60.00 V / 0.01 V | 600.0 V / 0.1 V

- Accuracy : 1.0% + 3 (DC, 45 Hz to 500 Hz). 2.0% + 3 (500 Hz to 1 kHz)

Continuity :

- Range/resolution : 600 Ω / 1 Ω

- Accuracy : Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.

Ohms :

- Range/resolution : 600.0 Ω / 0.1 Ω | 6.000 kΩ / 0.001 kΩ | 60.00 kΩ / 0.01 kΩ | 600.0 kΩ / 0.1 kΩ | 6.000 MΩ / 0.001 MΩ

- Accuracy : 0.9% + 1

- Range/resolution : 40.00 MΩ / 0.01 MΩ

- Accuracy : 5% + 2

Diode test :

- Range/resolution : 2.00 V / 0.001 V

- Accuracy : 0.9% + 2

Capacitance :

- Range/resolution : 1000 nF / 1 nF | 10.00 μF / 0.01 μF | 100.0 μF / 0.1 μF | 9999 μF / 1 μF | 100 μF to 1000 μF

- Accuracy : 1.9% + 2

- Range/resolution : > 1000 μF

- Accuracy : 5% + 20%

Lo-Z capacitance :

- Range : 1 nF to 500 μF

- Accuracy : 10% + 2 typical

AC amps True RMS (45 Hz to 500 Hz) :

- Range/resolution : 6.000 A / 0.001 A | 10.00 A / 0.01 A

- Accuracy : 1.5% + 3. 20 A continuous overload for 30 seconds max

DC amps :

- Range/resolution : 6.000 A / 0.001 A   10.00 A / 0.01 A

- Accuracy : 1.0% + 3. 20 A continuous overload for 30 seconds max

Hz (V or A input) :

- Range/resolution : 99.99 Hz / 0.01 Hz | 999.9 Hz / 0.1 Hz | 9.999 kHz / 0.001 Hz | 50.00 kHz / 0.01 Hz

- Accuracy : 0.1% + 2

Mechanical and General Specifications

Size : 167 x 84 x 46 mm

Weight : 550 g

Included : 80BK Temperature Probe, Installed 9V battery, Test leads, User manual

===========================================================
