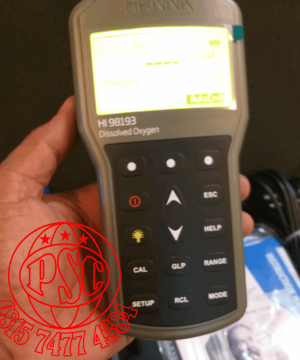

Dissolved Oxygen & BOD Meter HI98193 Cable 10 Meter Hanna Instruments

HI98193 Dissolved Oxygen & BOD Meter Cable 10 Meter Hanna Instruments

Specifications

DO Range

0.00 to 50.00 ppm ( mg/L ); 0.0 to 600.0% saturation

DO Resolution

0.01 ppm ( mg/L ); 0.1% saturation

DO Accuracy ( @25 ºC/77 ºF )

±1.5 % of reading ±1 digit

DO Calibration

Automatic one or two point at 100% saturation ( 8.26 mg/L ) and 0 % saturation ( 0 mg/L ).

Atmospheric Pressure Range

450 to 850 mmHg

Atmospheric Pressure Resolution

1 mmHg

Atmospheric Pressure Accuracy

± 3 mmHg within ±15 % from the calibration point

Atmospheric Pressure Calibration

One point at any in range pressure value

Temp. Range

-20.0 to 120.0 °C ( -4.0 to 248.0 °F )

Temp. Resolution

0.1 °C ( 0.1 °F )

Temp. Accuracy ( @25 ºC/77 ºF )

±0.2 °C; ±0.4 °F ( excluding probe error )

Temp. Calibration

One or two point at any in range temperature value

Temp. Compensation

Automatic from 0 to 50 °C ( 32 to 122 °F )

Measurement Modes

Direct DO; BOD ( biochemical oxygen demand ); OUR ( oxygen uptake rate ); SOUR ( specific oxygen uptake rate )

Barometric Compensation

Automatic from 450 to 850 mmHg

Salinity Compensation

Automatic from 0 to 70 g/L

Electrode/Probe

HI764073 polarographic DO probe with protective sleeve, internal temperature sensor, DIN connector and 4 m ( 13’ ) cable ( included )

Log-on-demand

Up to 400 samples

PC Connectivity

Opto-isolated USB with optional HI 92000 software and micro USB cable

Battery Type/Life

1.5 V AA batteries ( 4 ) / approximately 200 hours of continuous use without backlight ( 50 hours with backlight )

Auto-off

User selectable: 5, 10, 30, 60 min or can be disabled

Environment

0 to 50 °C ( 32 to 122 °F ); RH 100 % ( IP67 )

Dimensions

185 x 93 x 35.2 mm ( 7.3 x 3.6 x 1.4” )

Weight

400 g (14.2 oz.)

Ordering Information

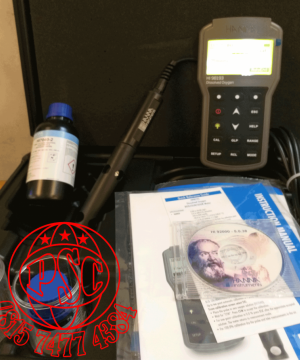

HI98193 is supplied with HI764073 DO probe, preformed PTFE membrane cap ( 2 ), HI7041S electrolyte solution ( 30 mL ), HI7040 bicomponent zero oxygen solution, 100 mL plastic beakers ( 2 ), HI92000 PC software, HI920015 micro USB cable, 1.5 V AA batteries ( 4 ), instruction manual, quick start guide, instrument quality certificate and HI760193 rugged carrying case.

Warranty

1 year
