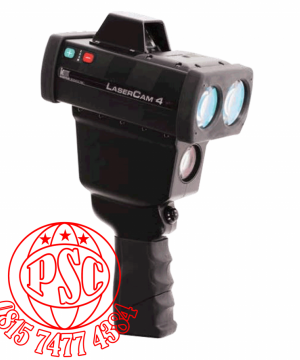

LaserCam 4 Hand-held Digital Video LIDAR Kustom Signal

LaserCam 4 Hand-held Digital Video LIDAR Kustom Signal

Key Features

AutoTrak™ ( patent pending )

Automatic optical zoom with approaching & receding target tracking

User selectable post recording action for faster target to target measurement

( returns camera zoom to desired initial view )

On image data

Date, time, serial number, GPS or site code, record #, user ID, operating mode, camera mode, posted speed, capture speed, target speed and range with units, and laser diameter at the target. Several fields optional.

Operational Modes

Video : Automatic, manual, range with video, video record only

Photo : Automatic, manual, range with photo*, photo* only *capture on trigger release

Poor weather setting available for all measurement modes, on screen icon

Languages

30+ language settings including English, Arabic, Bosnian, Chinese,Croatian, Czech, German, Estonian, Hungarian, Italian, Macedonian, Polish, Portuguese ( Brazil ), Portuguese, Romanian, Russian, Serbian ( Cyrillic ), Serbian ( Latin ), Slovak, Slovenian, and Spanish.

New languages easily added.

Encryption

AES 256 on file transfer

Performance

Optimum Focal Distance

From 10 m to 500 m ( 33 to 1,640 ft. )

Identify European registration plates at 200+ m ( 650 ft. ) - typical

Lens Operating Range

From 0 to infinity

Speed Accuracy

±1 km/h ( ±1 mph )

Speed Range

16 to 320 km/h ( 10 to 200 mph )

Optional 0 minimum speed

Range Accuracy

± 0.15 m ( ± 6 inches )

Speed : 1 km/h or 1 mph

Display Resolution

Distance : 0.1 meter or 0.1 foot

Minimum Distance

3 m. ( 10 ft .)

Maximum Distance

Up to 2.4 km ( up to 8,000 ft. )

Measurement Time

0.33 seconds

Laser Pulse Rate

200 Hz ( 200 pulses/second )

Laser Output Power

108 µWatts

Battery Life

10+ hours ( typical ), battery level indicator on rear display

Laser Wavelength

904 nm ± 10 nm

Certifications

Laser Class & Eye Safety

FDA/CDRH Class 1 Eye Safe ( CFR 21 )

IEC 60825-1

Shock & vibration

SAE J575 & J577

ESD, conducted & radiated immunity

EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11, IEC 61000-3-2, IEC 61000-3-3, IEC 801-3, EN 61326-1, & CISPR-11

FCC Class A

FCC CFR47 Part 15B: 2011

Ingress protection

IP-55 liquid & solid resistant to IEC 60529

NHTSA ( formerly IACP )

Conforming Product List ( CPL )

Calibration Management

Program calibration date, period, and behavior on expiration including warning title on evidence or system lockout until recertified.

Construction

Body

Aluminum housing with rubber bumpers, high-impact polycarbonate handle

Weight

1.70 kg ( 3 lb. 12.1 oz. ) with battery

1.46 kg ( 3 lb. 3.4 oz. ) without battery

Size

17.3 cm x 10.7 cm x 31.2 cm

( 6.8 in. x 4.2 in. x 12.3 in. )

Temperature Range

Operating : -30 °C to +60 °C

Charging : 0 °C to +50 °C

Storage : -30 °C to +70 °C

Hardware

Data Storage ( defaults )

16 GB Video, internal, expandable to 32 GB or 64 GB ( below )

16 GB meta-data, internal ( 67,000,000 events )

High video quality

4 MB/second ( PAL = 25 fps )

Video Record Time

16 GB ( default ) = 8.1 hours ( ~ 5,900 5-second video files or 18,600 images )

Expandable Video Memory

Option : 32 GB = 16.9 hours ( ~ 12,200 5-second video files or 38,564 images)

Option : 64 GB = 33.8 hours ( ~24,350 5-second video files or 76,960 images )

Still Image Size

720 x 576 ( equivalent from 0.4 to 15.8 MP with 36X optical zoom )

Photo Mode

16 GB 18,600 images

32 GB 38,564 images

64 GB 76,960 images

Aiming reticles

HUD – 4 user selectable including dot, cross, x, & circle with dot

DVR – 10 user selectable recorded with video/image

Microphone

Audio recording with video modes ( may be disabled if audio recording is not permissible )

Maximum Record Size

No limit

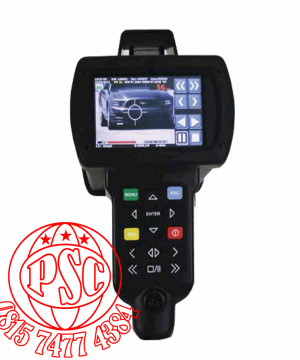

Touch ScreenDisplay

8.1 cm 800 x 480, color touch screen ( 3.2” ), glove friendly

Camera Sensor

Sony block with 720 x 576 video resolution

Camera Lens

36X optical zoom f=3,4 mm to 122,4 mm with auto focus and auto iris

Progressive scan, Image stabilizer

GPS Receiver

Channels : 48, Telit module GE864-GPS

Wi-Fi

IEEE 802.11 B/G/N with rear display icon

Real Time Clock

Li backup battery : 5 years without primary battery inserted

Temperature compensated crystal oscillators ( TCXOs ) Frequency temperature characteristics max. ±2 PPM TCXO frequency aging max ±3 PPM / year

Input/output ( I/O )

USB, Bluetooth, Wi-Fi, touch screen, microphone, 15 button keypad, and 2 button zoom control

Power

Battery Pack

3.7 v dc, 10.8 Ah Lithium Polymer rechargeable battery pack,short circuit and overcharge protected

Battery Charger

100 to 240 VAC 50/60 Hz, 2 Amp

Corded power

12 VDC 2.8 m corded handle insert with cigarette plug adapter

Software

Video management

ProLog Lite ( included )

ProLog Standard with multiple device support, expanded reports

ProLog Standard Client – use with additional PC ( s ) that will access a common

ProLog SQL database

Data logging

Proprietary ( ProLog ) or

DLLs with XML support

System setup

Menu selectable on device

PC Setup utility

Each LaserCam 4 bundle

** Includes the LaserCam 4 with Li-polymer rechargeable battery, AC battery charger, USB cable, 16 GB internal video memory, 16 GB metadata memory, compass, inclinometer, GPS, 802.11 B/G/N Wi-Fi, Bluetooth, microphone, rugged carry case, and ProLog LITE video evidence management tool.

** Bundles may vary based on region or contract requirements.

Optional Accessories

Stabilization

Tripod kit ( rugged tripod, fluid video head, & LaserCam 4 adapter ) or

Adjustable shoulder stock

Bluetooth Printer

Brother PocketJet 7 ( below )

Padded Soft Case

Motorcycle saddlebag sleeve with battery pocket & shoulder strap

Bluetooth Wireless Printing Direct from LaserCam 4

Model

Brother PocketJet® 763 with Bluetooth and Linux support

Print method

Direct thermal technology

Printer resolution

300 x 300 dpi

Media Sizes

Letter, legal, A4, continuous, custom sizes, & pre-printed media

Max Print Speed

8 ppm ( pages per minute )

Dimensions

25.4 cm L x 5.6 cm W x 3.0 cm H ( 10.0” L x 2.2” W x 1.2” H )

Weight

0.58 kg ( 1.3 lbs. )

Power

Li-ion battery; AC adapter, and DC vehicle adapter

Battery yield

600 pages from 100 % charge

In-Vehicle Kit

Includes PocketJet 7, battery, DC adapter, paper roll, & enclosure

Infrared Emitter for Night Operation

IR Operating Modes

Flood light ( always on ) OR

Performance

Dynamic Bluetooth control ( LaserCam 4 ) based on range to target

125 meters ( European front registration plate - reflective )

330 feet ( US front registration plate - reflective ) Results will vary for non-reflective registration plates

Bluetooth range

Up to 60 m ( 200 ft. ) down the road from LaserCam 4

IR LED

6 LEDS with 850 nm, 2θ =8° lens

Array weight

1.11 kg ( 7.45 lbs. )

Array dimensions

17.8 cm ( H ) x 8.9 cm ( W ) x 10.2 cm ( W )

7.0” ( H ) x 3.5” ( W ) x 4.0” ( W )

Power

12 VDC 18 Ah lead acid battery ( battery sourced locally )

Battery dimensions : 18 cm x 16.5 cm x 6 cm (7.0” x 6.5” x 2.4”)

Power supply case

32 cm ( L ) x 27 cm ( H ) x 13 cm ( W )

12.6 in ( L ) x 10.6 in ( H ) x 5.1 in ( W )

Power supply weight

7.43 kg ( 17.0 lbs. ) with battery

Current draw

2.8 Amp ( max )

Battery life

6 hours ( typical )

Ingress protection

IP-55 liquid & solid resistant to IEC 60529

LaserCam 4 night time illumination kit includes IR LED array with tripod mount, daylight cut filter, 2.8 m power cable, AC charger, power supply case with Bluetooth antenna ( 12 VDC battery sourced locally )

Optional : 12 VDC adapter to power supply case

Optional : Tripod sourced separately

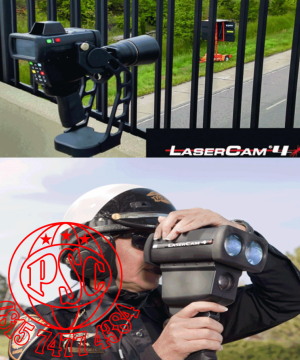

Long Range Yoke and Telephoto Lens kit

Performance

Identify European registration plates 400 m ( 1,310 ft. ) - typical

Yoke & breach mount weight

2.7kg ( 6.0lbs. )

Yoke & breach mount dimensions

35.0 cm ( H ) x 16.5 cm ( W ) x 14.0 cm ( D )

13.75” ( H ) x 6.5” ( W ) x 5.5” ( D )

Polarizing filter

82 mm HRT Circular-Polarizer UV Filter

Telephoto lens

Magnification

2.2x

Front filter thread

82 mm ( 3.2” )

Mounting thread

62 mm ( 2.4” )

Dimensions

123 mm x 86 mm ( 4.8” x 3.4” )

Weight

275 g ( 9.7 oz )

Each LaserCam 4 Long Range Yoke kit includes tripod mounted yoke with fluid video head, 2.2x optical telephoto camera lens, polarizing filter, tripod with carry bag and hard carry case.
