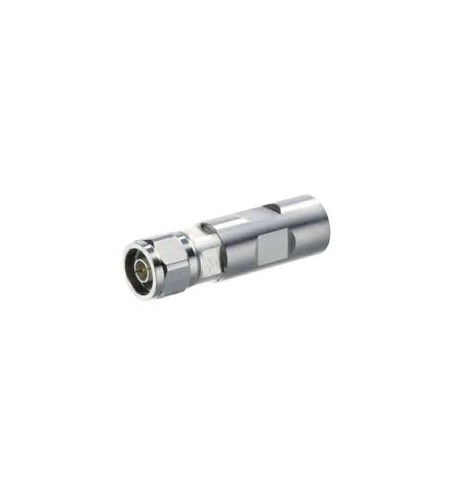

Connector Andrew L4PNF type-N Female, LDF4-50A
General Specifications:
• Interface : N Female
• Body Style : Straight
• Brand : HELIAX®
• Mounting Angle : Straight
Electrical Specifications:
• Connector Impedance : 50 ohm
• Operating Frequency Band : 0 – 8800 MHz
• Cable Impedance : 50 ohm
• RF Operating Voltage, maximum ( vrms) : 707.00 V
• dc Test Voltage : 2000 V
• Outer Contact Resistance, maximum : 0.30 mOhm
• Inner Contact Resistance, maximum : 2.00 mOhm
• Insulation Resistance, minimum : 5000 MOhm
• Average Power : 0.6 kW @ 900 MHz
• Peak Power, maximum : 10.00 kW
• Insertion Loss, typical : 0.05 dB
• Shielding Effectiveness : -110 dB
Mechanical Specifications:
• Outer Contact Attachment Method : Self-flare
• Inner Contact Attachment Method : Solder
• Outer Contact Plating : Trimetal
• Inner Contact Plating : Gold
• Attachment Durability : 25 cycles
• Interface Durability : 500 cycles
• Interface Durability Method : IEC 61169-16: 9.5
• Connector Retention Tensile Force : 890 N | 200 lbf
• Connector Retention Torque : 5.42 N-m | 48.00 in lb
• Pressurizable : No
Dimensions:
• Nominal Size : 1/ 2 in
• Diameter : 22.86 mm | 0.90 in
• Length : 66.04 mm | 2.60 in
• Weight : 68.00 g | 0.15 lb
Environmental Specifications:
• Operating Temperature : -40 ° C to + 85 ° C ( -40 ° F to + 185 ° F)
• Storage Temperature : -40 ° C to + 85 ° C ( -40 ° F to + 185 ° F)
• Immersion Depth : 1 m
• Immersion Test Mating : Mated
• Immersion Test Method : IEC 60529: 2001, IP68
• Moisture Resistance Test Method : MIL-STD-202F, Method 106F
• Mechanical Shock Test Method : MIL-STD-202, Method 213, Test Condition I
• Thermal Shock Test Method : MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 ° C
• Vibration Test Method : MIL-STD-202F, Method 204D, Test Condition B
• Corrosion Test Method : MIL-STD-1344A, Method 1001.1, Test Condition A
