Spesifikasi Cable Gland OSCG Wire Armoured

Spesifikasi Cable Gland OSCG Wire Armoured E1WF Type

Jual Cable Gland OSCG, Cable GLand OSNJ, Cable Gland Unibell, Cable Gland Brass, Cable Gland Nylon, Cable Gland Hawke, Cable Gland metal PG dan Lain - lain.

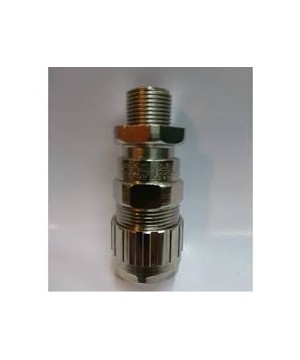

Wire Armoured Cable Gland E1WF Type

Application

• Outdoor & Indoor
• For use with steel wire armoured cable for zone1 & zone2 in hazardous area
• Double compression for outer/inner jacket of cable
• Inspectable armoured clamping cable gland

Protection

• II2 GD / Exd IIC / Exe II / EX tD A21 / IP66 / 67
• The entry thread should be suitably
• Sealed in order to maintain IP rating
• Allowed temperature on the elastomeric sealing ring : 20°C - 120°C[ATEX], -60°C - 130°C[CU TR]

Materials

Nickel Plated Brass[Standard], Brass, Stainless Steel

Accessories

Locknut, Sealing Washer, Earth Tag, Shrouds, Serrated Washer, Elbow, Reducer, Adaptor

Design Specification

BS6121, IEC 62444, EN 50262

Cable gland Ordering

[Gland type / Size & Entry Thread Size] e.g E1WF 16a/M16

Option : Thread 18mm

Regulation

According to BS, IEC & CENELEC

Suitable for use in Zone1, Zone2

Suitable for use in Gas Groups, IIA, IIB and IIC

Certificate

IECEx KOSHA [IECEx KOS 09.0018X]

ATEX NEMKO [02ATEX500X]
