Block Heater 2 Block Analogue SBH130 Stuart

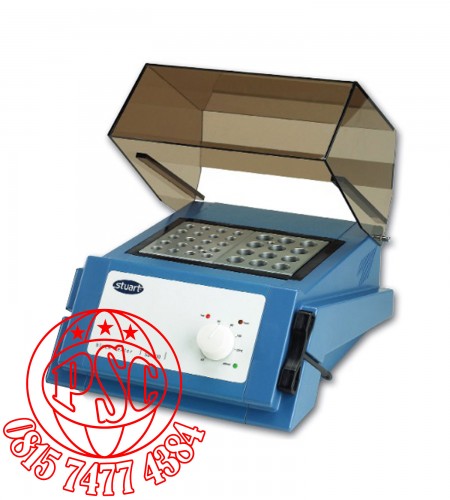

Block Heater 2 Block Analogue SBH130

Specifications

Temperature range Ambient

+8°C to 130°C

Temperature stability at 37°C

±0.1°C

Uniformity block at 37°C

±0.1°C

Uniformity block at 130°C

±1°C

Dimensions ( w x d x h )

235 x 280 x 115 mm

Net weight ( without blocks )

2.1 kg

Heater power

300 W

Electrical supply

230 V, 50 Hz

Aluminium Blocks

For use with Stuart block heaters

Manufactured from anodised aluminium

All with a separate hole to accommodate a thermometer if desired ( Exc. SHT1/0 )

All blocks* have dimensions ( w x d x h ) 75 x 95 x 50mm and may be used in any combination

Item Code

Tube (diameter/type)

No. of Holes

Hole Size (dia. x depth) mm

SHT1/0

Plain block

-

-

SHT1/10

10 mm

20

10.5 x 47

SHT1/12

12 mm

20

12.6 x 47

SHT1/12/33

12 mm

20

12.6 x 33

SHT1/13

13 mm

20

13.5 x 47

SHT1/16

16 mm

12

16.5 x 47

SHT1/19

19 mm

8

19.5 x 47

SHT1/20

2 ml tubes

20

10.5 x 33

SHT1/21

Block with removable channels for glass and disposable cuvettes

-

-

SHT1/22

1.5 ml tubes

20

10.7 x 14 ( 9° taper )

SHT1/25

25 mm

6

25.5 x 47

SHT1/28

28 mm

6

28.0 x 47

SHT1/30

0.5 ml tubes

30

7.8 ( 9° taper )

SHT1/30/1

30 mm

4

30.1 x 47

SHT1/33

33 mm

4

33.2 x 47

SHT1/48

0.2 ml tubes

48

61 ( 9° taper )

SHT1/80

0.2 ml strip

10 x 8

-

SHT1/96

96 well plate

-

7.5 ( 9° taper )

SHT1/384

384 well plate

-

3.6 ( 9° taper )
