Jual Angle Valve BFS HA series
Gambar Produk
Jual Angle Valve BFS HA series
Brand
BFS
Lokasi
Jawa Tengah - Batang - Batang
Harga
Kontak Kami
Dilihat Sebanyak
150 kali
Update Terakhir
13-09-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Jual Angle Valve BFS HA series

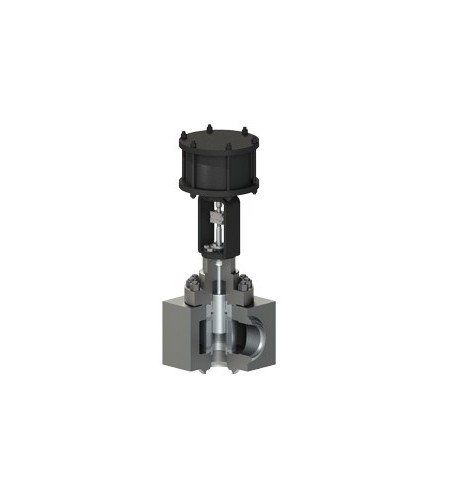

Heavy-duty Angle valve / HA series
Angle
Heavy-duty Body X[iks]-trim
Bonnet
Plain, Extension, Bellows Seal.
Size
2"(50A) through 26" (650A) Over 26" (Option)
Pressure Rating (ANSI)
150,300,600,900,1500,2500,4500
Process Connection
RF, RTJ, SW, BW, Others..
Trim Form
X[iks]-trim
Application
Severe Service,Feed-water start-up, Feed-pump recirculation, Feed-water main control.
HAXTG2 / X-trim Angle
| Construction | Heavy-duty Angle Pattern |
| Trim Form | X[iks]-trim Cage Balanced Type |
| Size | 2" to 16" [Option over 26"] |
| Rating | Class 300# to 4500# |
| Characteristic | Linear, EQ%, Mod-% |
| Seat Leakage | FCI 70-2 Class IV.V.VI |
| Flow Direction | Flow to Close |
| Typical Application | Feedwater Recirculation Control Valve Feedwater Minimum Flow Control Valve |
HAXTG3 / X-trim Aux. Angle
| Construction | X[iks]-trim Angle Pattern |
| Trim Form | X[iks]-trim Aux. Pilot Plug Type |
| Size | 8" to 16" [Option over 26"] |
| Rating | Class 300# to 4500# |
| Characteristic | Mod-% |
| Seat Leakage | FCI 70-2 Class V |
| Typical Application | Feedwater Recirculation Control Valve Feedwater Minimum Flow Control Valve |
Angle
Heavy-duty Body X[iks]-trim
Bonnet
Plain, Extension, Bellows Seal.
Size
2"(50A) through 26" (650A) Over 26" (Option)
Pressure Rating (ANSI)
150,300,600,900,1500,2500,4500
Process Connection
RF, RTJ, SW, BW, Others..
Trim Form
X[iks]-trim
Application
Severe Service,Feed-water start-up, Feed-pump recirculation, Feed-water main control.
