Jual Angle Valve BFS CA series
Gambar Produk
Jual Angle Valve BFS CA series
Brand
BFS
Lokasi
Jawa Tengah - Batang - Batang
Harga
Kontak Kami
Dilihat Sebanyak
179 kali
Update Terakhir
09-09-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Jual Angle Valve BFS CA series

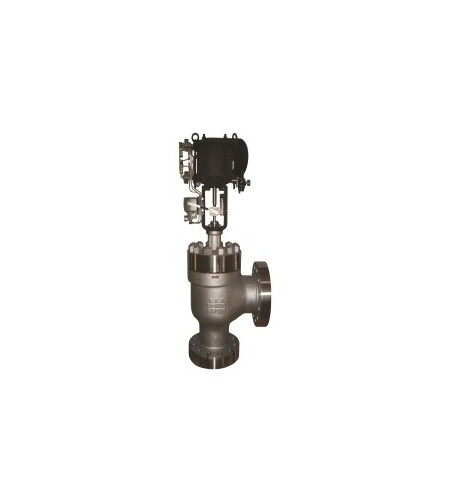

Cage Guided Angle Valve / CA series
Angle
Cage Guided Balanced Trim
Bonnet
Plain, Extension, Bellows Seal.
Size
2"(50A) through 26" (650A) Over 26" (Option)
Pressure Rating (ANSI)
150,300,600,900,1500,2500,4500
Process Connection
RF, RTJ, SW, BW, Others..
Trim Form
Conventional Cage, MH1S, MH2S, MHMS, Multi-step, X[iks]-trim
Application
Standard Severe Service, Cryogenic Service, Urea (Ammonia) Plant.
CAC2G2 / Cage Angle
| Construction | Cage Angle Pattern |
| Trim Form | Conventional Balanced Cage Type |
| Size | 2" to 26" [Option over 26"] |
| Rating | Class 150# to 4500# |
| Characteristic | Linear, EQ%, Mod-% |
| Seat Leakage | FCI 70-2 Class IV.V.VI |
| Typical Application | General Service Lower diff.P with Large Capacity |
CAM1G2 / Multi hole 1 stage Angle
| Construction | Cage Angle Pattern |
| Trim Form | Multi-Hole 1-stage Balanced Cage Type |
| Size | 2" to 26" [Option over 26"] |
| Rating | Class 150# to 4500# |
| Characteristic | Linear, EQ%, Mod-% |
| Seat Leakage | FCI 70-2 Class IV.V.VI |
| Typical Application | Fuel oil or fuel gas pressure control valve Middle/Low pressure steam control valve |
CAM2G2 / Multi Hole 2-stage Angle
| Construction | Cage Angle Pattern |
| Trim Form | Multi-Hole 2-stage Balanced Cage Type |
| Size | 2" to 26" [Option over 26"] |
| Rating | Class 150# to 4500# |
| Characteristic | Linear, EQ%, Mod-% |
| Seat Leakage | FCI 70-2 Class IV.V.VI |
| Typical Application | Deaerator Level control valve Medium/Low pressure steam control valve |
CAM3G2 / Multi Hole 3-stage Angle
| Construction | Cage Angle Pattern |
| Trim Form | Multi-Hole 3-stage Balanced Cage Type |
| Size | 2" to 26" [Option over 26"] |
| Rating | Class 150# to 4500# |
| Characteristic | Mod-% |
| Seat Leakage | FCI 70-2 Class IV.V.VI |
| Typical Application | Auxiliary steam pressure control valve Soot blower steam & Gland steam pressure control valve |
Angle
Cage Guided Balanced Trim
Bonnet
Plain, Extension, Bellows Seal.
Size
2"(50A) through 26" (650A) Over 26" (Option)
Pressure Rating (ANSI)
150,300,600,900,1500,2500,4500
Process Connection
RF, RTJ, SW, BW, Others..
Trim Form
Conventional Cage, MH1S, MH2S, MHMS, Multi-step, X[iks]-trim
Application
Standard Severe Service, Cryogenic Service, Urea (Ammonia) Plant.
