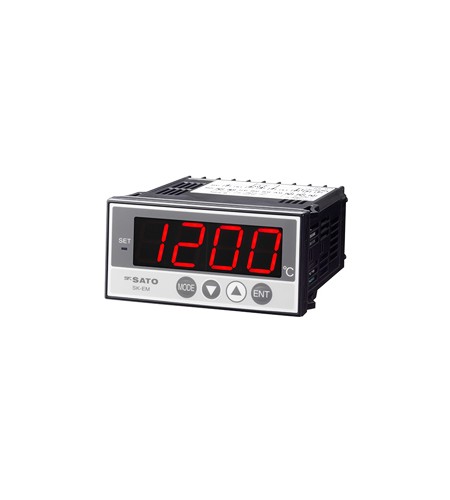

SK-SATO EM Digital Panel Meter
Perhatian!
Spesifikasi SK-SATO EM Digital Panel Meter
|
 |
- Easy-to-read large bright LED display (height of character: 20mm)
- Multiple inputs: Thermocouple, RTD and voltage
- Compact (DIN ) size: 48×96mm
- Suitable to connect with SK-8200 infrared thermometer and SK-RHC series transmitters.
- Conform to RoHS directives
|
|
| Display | 7 segment LED (height of character: 20mm) |
| Resolution | Refer to the table below |
| Power requirements | 100 to 240V AC ±10% (50/60Hz) |
| Power consumption | 11VA (100 to 240V AC) |
| Mounting | Push-in panel (One-touch mount) |
| Operating ambient | Temperature:-10°C to 50°C,Humidity: lower than 90%rh(No condensing),Max. elevation: 2000m |
| Display accuracy | ±(0.3%FS+1dgit) within measuring range Thermocouple input: excluding cold junction temperature compensation accuracy. Thermocouple B: ±5%FS at lower than 400°C Thermocouple T,U: ±0.5%FS at -100°C to 0°C ±1%FS at lower than -100°C |
| Insulation resistance | Between input/output terminal-power terminal: more than 500VDC 20MΩ Between input/output terminal-earth terminal: more than 500VDC 20MΩ |
| Dimensions/weight | (W)96 × (H)48 × (D)111mm (inside100mm) approx. 250g |
