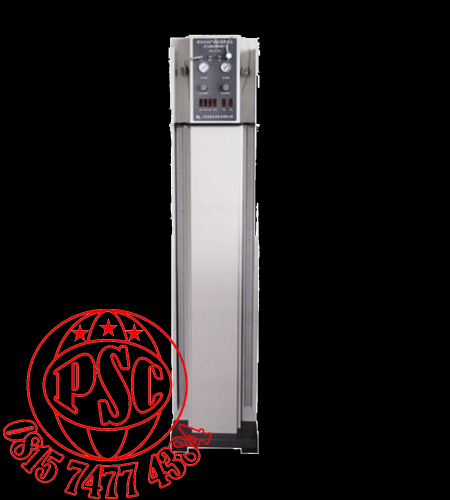

Liquid Petroleum Hydrocarbon Tester SYD-11132

Liquid Petroleum Products Hydrocarbon Tester SYD-11132

Specifications

Power supply

AC 220 V ±5 %,50 Hz

Pressure regulating range of reducing valve

( 0~400 ) kPa

Electric agitator

Independently controlled for each way

Ultraviolet light source pipe

1220 mm in length,wavelength is 365 mm ±5 nm

Illuminating lamp

1220 mm in length,power is 40 W

Air supply

Nitrogen cylinder ( or air compressor,compressed air bottle )

Ambient temp.

( 5~35 ) ºC

Relative humidity

≤85 %

Dimension

350 × 400 × 1770 mm

Maximum power consumption

600 W

Accessories & documents List

Name

Unit

Qty

Memo

SYD-11132 Liquid Petroleum Products Hydrocarbon Tester

Set

1

Precision inner diameter adsorption column

Piece

2

imported silica gel ( 500 g )

Bottle

1

imported fluorescent indicator ( 4 g )

Bottle

1

6 mm intake pipe ( intake pipe with cylinder connection )

Set

1

Glass grinding plug ( with trachea )

Set

2

Glass flow export

Piece

2

Grinding mouth clip ( 28, large )

Piece

2

Grinding mouth clip ( 12, small )

Piece

2

Indicate that the dose spoon

Piece

1

Special needle used for cleaning

Piece

1

When used for washing

00 ml waste liquid bottle (with rubber stopper & PU tube)

Set

1

When used for washing

Plastic measuring cup ( 250 ml )

Piece

1

When used for washing

Magnetic pointer

Piece

8

Placed on both sides of the scale

Magnetic fixed base

Piece

2

When the vibration place the magnetic fixed basein the bottom of the absorption colum

Fuse ( 10 A,Ф5 × 20 )

Piece

2

Spare parts

Purple light tube, 40 W, 365 nm wavelength

Piece

1

Spare parts, placed inside the instrument

Sampler ( 1 ml injector with needle )

Piece

1

Operation manual

Piece

1

Quality certificate

Piece

1

Product Warranty Card

Piece

1
