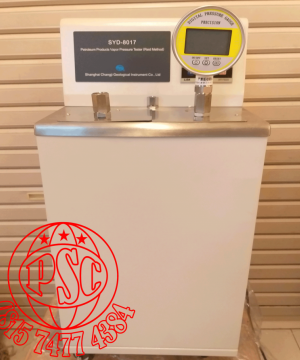

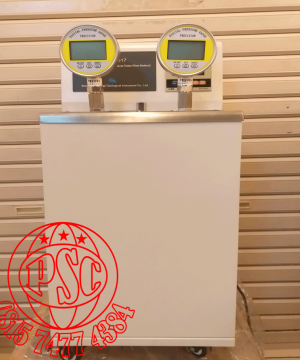

Vapor Pressure Tester ( Reid Method )SYD-8017

SYD-8017 Vapor Pressure Tester ( Reid Method )

SYD-8017 Petroleum Products- Determination of vapor pressure- Reid method. It is used to test make determination for vapor pressure of gasoline, volatile crude oil and other volatile petroleum products.

Specifications

Power supply

AC ( 220 ±10 % ) V, 50 Hz

Heating power of bath

1600 W

Temp. control range of bath

( Room temp.~90 ) ºC

Temp. control accuracy of bath

±0.1 ºC

Accuracy of pressure meter

±0.4 %

Ambient temperature

( -10~35 ) ºC

Relative humidity

≤85 %

Maximum power consumption

1700 W

Dimension

350 × 340 × 750 mm

Accessories & documents List

Name

Unit

Qty

Memo

SYD-8017 Vapor Pressure Tester (Reid Method)

Set

1

Single opening pressure bomb

Set

2

Pressure gauge, 0 MPa~0.1 Mpa

Piece

2

Mercury thermometer 0 ºC~50 ºC, scale division  0.1 ºC

Piece

1

Suitable for Reid vapor pressure ( 20.0~75.0 ) kPa

Screw valve with outer screw thread ( for sealing air chamber )

Piece

2

Screw cap with inner screw thread ( for sealing gasoline chamber )

Piece

2

Small gasket ( outer diameter Φ14.5 mm, inner diam. Φ8 mm )

Piece

4

Sealing ring for pressure meter ( outer diameter Φ18 mm, inner diameter Φ6 mm )

Piece

4

8# Rubber stopper

Piece

1

Stopping ring for thermometer ( 1# )

Piece

2

Fuse 10 A ( φ5 × 20 )

Piece

2

Operation manual

Piece

1

Quality certificate

Piece

1

Product Warranty Card

Piece

1

Temperature control device usage manual

Piece

1

Reagent & Auxiliary Equipments

Name

Specification

Qty

Memo

Naphtha

500 ml

1 bottle

As the cleaning agent to for oxygen compound gasoline sample

Acetone

500 ml

1 bottle

Refrigerator

Smallest

1 set

Constant temp. 0-1 ºC
