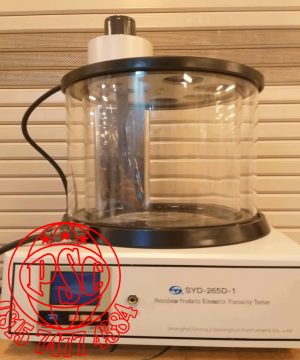

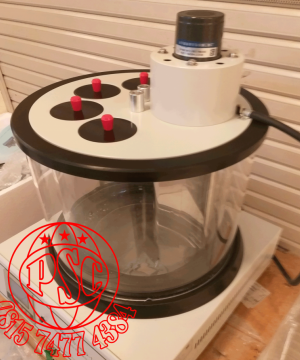

Kinematic Viscometer SYD-265D-1

SYD-265D-1 Kinematic Viscometer

Spec

Power supply

AC220 ± 10 %,50 Hz

Heating power

1000 W ( Auxiliary Heating ),600 W ( Heating )

Stirring motor

6W,1200 RPM

Temp. range

Ambient to 100.0 ºC.

Temp. control accuracy

±0.0 ºC.

Timer

0.0 s ~ 999.9 s

Constant temp. bath

20 L, double shall structure

Ambient temp.

-10 ºC~+35 ºC

RH

<85 %

Max. power consumption

1800 W

Capillary viscometer tubes ( Pinkevitch Viscometer )

7 Pcs in total.

The inner diam. for each

0.6,0.8,1.0, 1.2,1.5,2.0 & 2.5 mm

Dimenssions

530 × 400 × 670 mm

Net Weight.

42 Kg

Accessories & documents List

Name

Unit

Qty

Memo

SYD-265D-1

Set

1

( With glass inner and external cylinder,tirring device,rubber ring etc )

Capillary viscometer (7 piece in a group )

Group

1

Rod type mercury thermometer

Pc

Each 1

( 0~50 ºC, 50~100 ºC,scale mark 0.1 ºC )

Plumb bob

Pc

1

Sensor

Pc

1

Bakelite cover

Pc

4

Clamps of capillary tube

Pc

4

Silica gel plug ( 3# )

Pc

2

Fuse 10 A ( Ф6 × 30 )

Pc

4

Round glass

Pc

1

Stopping ring of thermometer ( 1# )

Pc

4

Line control timing button (connected by user)

Pc

1

Ear washing bulb

Pc

1

Manual Book

Pc

1

Certificate

Pc

1

Warranty card

Pc

1

Glycerol or mineral oil

20 L

Test temp. above 80 ºC

Petroleum ether 60-90 ºC

Analytical pure 500 ml

1 bottle

Distilled watter

3 grade

Some
