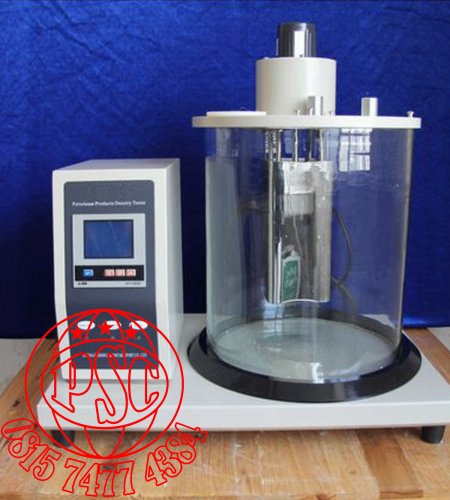

Petroleum Density Tester SYD-1884

Petroleum Density Tester SYD-1884

This instrument is designed and made as per standards GB/T 1884-2000 Crude petroleum and liquid petroleum products - Laboratory determination of density - Hydrometer method & ASTM D1298 Standard Test Method for Density, Relative Density ( Specific Gravity ),or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method. It is used to determine the density of crude petroleum and liquid petroleum.

Features

This instrument is a kind of all-in-one machine. The control box adopts humanized design. The control switch adopts light-touch mode. It's structure is simple and compact. Easy to operate

It adopts intelligent LCD temp. controller. The control rate is fast and overstrike is small. The temp. control can reach ±0.2 ºC

It equips a hard glass vessel and electric stirrer. The temperature in vessel is uniform. Easy to observe the sample

Technical Specifications

Power supply

AC ( 220 ±10 % ) V,50 Hz

Dimension of constant temp. bath

Ф300 mm × 340 mm

Capacity of cylinder

500 ml

Heating power

700 W,1000 W

Temperature controller

  (1) Range

Ambient to 100 ºC

  (2) Accuracy

±0.2 ºC

  (3) Sensor

Pt 100

Thermometer

Mercury-in-glass thermometer. Scale division is 0.2 ºC

Dimension

560 × 380 × 580 mm

Accessories & documents List

Name

Unit

Qty

Memo

SYD-1884 Petroleum Products Density Tester

Set

1

Thermometer ( -20 ~ 102 ºC,scale division 0.2 ºC )

Piece

1

SY-05 Petroleum density meter ( 10 pieces/group )

Set

1

Sensor

Piece

1

Thermometer stopper ( 3# )

Piece

2

500ml test tube

Piece

2

Stopping ring for thermometer ( 1# )

Piece

4

Rubber stopper ( 21# )

Piece

1

Fuse 10 A ( Φ5 × 20 )

Piece

2

Sample tube holder

Piece

2

Operation Manual

Piece

1

Temperature controller usage manual

Piece

1

Quality Certificate

Piece

1

Repair Guarantee

Piece

1
