Blaine Apparatus Electronic Semi-Automatic H-3056.3F Humbolt

Blaine Apparatus Electronic Semi-Automatic H-3056.3F Humbolt

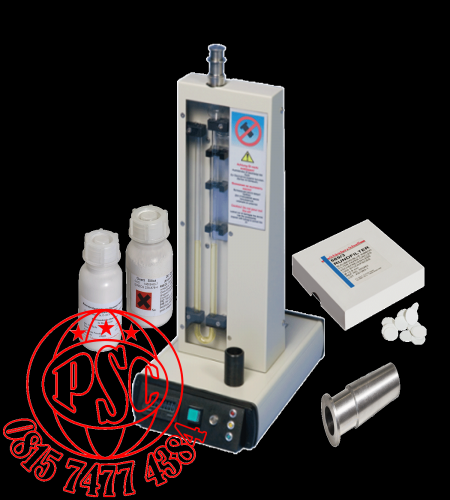

The Semi-automatic Blaine Apparatus provides more accuracy and precision than provided by the manual Blaine Apparatus. Calibration of this unit is done using a cement sample reference, such as NIST 114q. To obtain the most accurate results, the test should be performed in a temperature controlled environment. Unit inlcudes: the unit with an electric pump and time registration; filter papers ( 12.8mm, 1000pk; fill oil (50ml); Plug; thermometer; brush and funnel.

The Blaine Apparatus, Electronic, Semi-Automatic supports the following standards: ASTM C204, AASHTO T153, EN 196;, DIN 1164, BS 4550

Accessories

H-3056.1

Filter Paper, Ashless, Box of 1000 ( 12.8 mm )

Filter Paper, Ashless, Box of 1000 ( 12.8 mm ). For use with the H-3056.3F Blaine Apparatus, Semi-Automatic.

H-3056.2

Calibration Sand, Coarse

Course calibration sand for use with the H-3056 Blaine Apparatus.

H-3056.4

Calibration Sand, Fine

Fine calibration sand for use with the H-3056 Blaine Apparatus

H-3056.5

Fill Oil for Blaine Apparatus

Fill Oil for H-3056, H-3058 and H-3059 Blaine Apparatus.

H-3056.6

U-Shaped Tube for H-3056 Blaine Apparatus

H-3056.8

Perforated Cell for H-3056 Blaine Apparatus

H-3056.10

Light Grease for H-3056 Blaine Apparatus

H-3056.11

Measuring Cell for Blaine Apparatus

Measuring cell for H-3056 Blaine Apparatus.

H-3056.13

Tamper for H-3056 Blaine Apparatus
