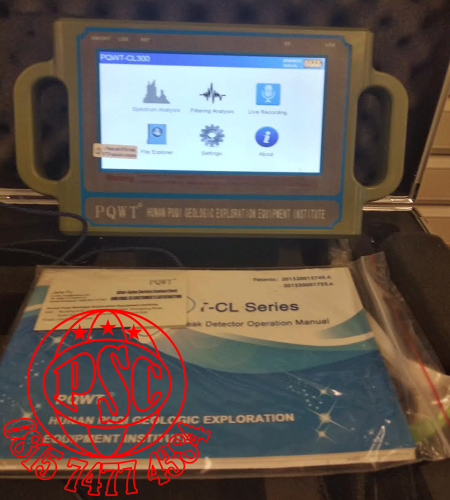

Water Leak Detector PQWT-CL300-3 Meters

Water Leak Detector PQWT-CL300-3 Meters

Lastest ultrasonic Underground Pipes Water Leak DetectorPQWT-CL300, 3M

Main Features

1. The use of latest digital signal processing chip and a digital filter chip, 16M cache controller integrated, more responsive. In particular,it can filter with the  interference of environmental noise, screening out the leakage noise, allowing the operator to lock leakage points quickly.

2. 7-inch high-definition digital color LCD touch screen with a resolution of 800 * 480, can provide 12 display pages, can show the measurement parameters more clearly and intuitively, and full touch screen design, simple operation.

3. Each has 1 ~ 6000 Hz frequency range ( spectrum analysis ), can be displayed the distribution of the noise signal at each frequency in real-time.

4. Automatic drawing continuous noise curve ( Long-Term Mode ) within a certain time, So that the leakage point position is determined more quickly.

5. Sensor is built-in preamp circuit, using a rubber ring seal and cushion, and the application of professional acoustic methods, making the ability to capture the noise is higher than similar products.

6. Adopt latest noise detecting element, sounds clear.

7. Save 8 sections totaling eight minutes of recording, which is not lost after shut down, could be analyzed at any time.

8. Using a large capacity battery, can work for more than ten hours , and can be removed charging and online charging.

9. Super anti-jamming circuit design, digital signal and analog signal effectively isolate and eliminate the noise generated by the digital circuit.

Technical Parameters

Measuring Depth

3 meter

Frequency Range

1-6000 HZ

Audio Amplifier Gain

Adjustable within the class of 100 dB

Operation Mode

Spectrum Analysis, Filtering Analysis, Location Mode, Long-term Mode

LCD Size

7-inch HD Digitial LCD Touch Screen

Live Recording

Recording sound, saving sound, replay and automati save the records when shut down repeat and delete the records.

Stand-by Time

8 Hours

Power Supply

3.7 V 4000 mAh Rechargeable lithium Battery

Host

27 cm x 16 cm x 5 cm

Gross Weight

8.7 kg
