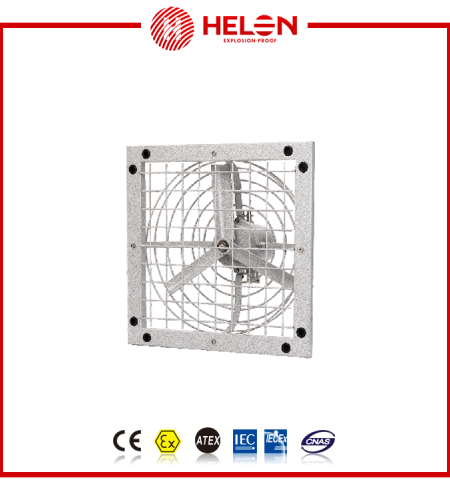

BFS-□F Series of explosion-proof exhaust fan (Square)(ⅡB)
Gambar Produk
BFS-□F Series of explosion-proof exhaust fan (Square)(ⅡB)
Brand
Helon
Minimum Pembelian
1 Unit
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Banten - Tangerang - Karawaci
Harga
Kontak Kami
Dilihat Sebanyak
706 kali
Update Terakhir
15-08-2018
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi BFS-□F Series of explosion-proof exhaust fan (Square)(ⅡB)
Applications
1. Can be used in Zone 1 and Zone 2,groupⅡA,ⅡB and explosive atmosphere;
2. Temperature classes: T1 ~ T4;
3. Indoor and outdoor (IP54);
4. For the chemical industry, oil refining, oil exploration, oil tankers, pharmaceutical, military and other dangerous places for ventilation, exhaust, cooling purposes.
Features
1. The product is made of the explosion-proof motor, blades, metal frame, blinds and other components;
2. The surface electrostatic spray, exposed fasteners is stainless steel , appearance;
3. louvers for aluminum, anodized surface;
4. with a damping device, low noise operation;
5. wiring with cable.
Model implication
Main technical parameters
| Type specification | Rated | Power(W) | Air valume | Main shaft speed | Ex-mark | Degree of | Erosion- | Inlet thread | Cable outer |
| voltage (V) | (m3/min) | (rpm/min) | protection | proof class | (G) | dia.(mm) | |||
| BFS-300F(S) | 220 | 180 | 24 | 1450 | ExdⅡBT4Gb | IP54 | W, WF1 | 3/4 | φ10～φ14 |
| BFS-400F(S) | 380 | 48 |
Outline & installation dimensions
| Type specification | A(mm) | B(L×W)(mm) | C(L×W)(mm) |
| BFS-300F(S) | 246 | 398×398 | 356×280 |
| BFS-400F(S) | 246 | 498×498 | 456×380 |
Helon Internusa Flamindo
PT. Helon Internusa Flamindo a distributor for HELON in Indonesia. We try to provide the best for our customers.
Our product is Explosion Proof LED Lighting, Explosion Proof Junction Box, Explosion Proof Lighting Fixture, Explosion Proof Air Conditioner (AC), Explosion Proof Blower, Explosion proof Axial Fan, Explosion proof Portable blower, Explosion Proof Cable Glands, Explosion Proof Torch Light, Explosion Proof Push-button, Senter Explosion proof, Explosion Proof Switches, Lampu sorot Explosion proof, Lampu Explosion proof warning light, Explosion Proof Plugs and sockets outlet, Explosion Proof Hand Lamp, Explosion Proof Alarm Light, Lampu tembak explosion proof, Explosion Proof Load Center, Explosion Proof Portable Lighting, Explosion Proof Floodlight, etc.
