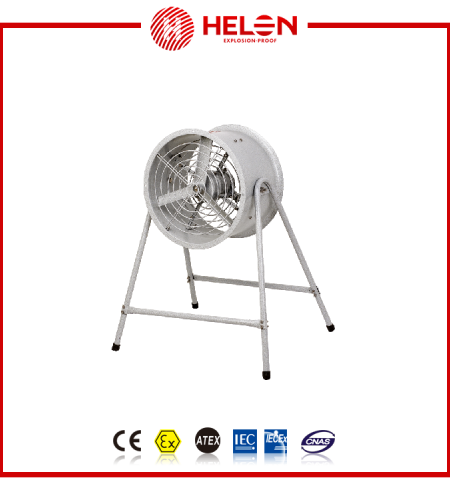

BFS- Series explosion-proof exhaust fan(ⅡB)
Gambar Produk
BFS- Series explosion-proof exhaust fan(ⅡB)
Brand
Helon
Minimum Pembelian
1 Unit
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Banten - Tangerang - Karawaci
Harga
Kontak Kami
Dilihat Sebanyak
852 kali
Update Terakhir
15-08-2018
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi BFS- Series explosion-proof exhaust fan(ⅡB)
Applications
1. Can be used in Zone 1 and Zone 2,groupⅡA,ⅡB and explosive atmosphere;
2. Temperature class: T1~T4.
3. Indoor or outdoor (IP54).
4. Can be used in the chemical, petroleum refining, petroleum offshore platform, tankers, pharmaceutical, war industry and other dangerous place for ventilation, exhaust, cooling purposes.
Features
1. The product is composed of explosion-proof motor, vanes, air duct, protection net ,and so on.
2.The surface is high voltage electrostatic spraying, use stainless steel exposed fasteners
3. Wiring with cable.
Model implication
Main technical parameters
| Type | Rated | Power(W) | Air valume | Main shaft speed | Ex-mark | Degree of | Erosion- | Inlet thread | Cable outer | |
| voltage (V) | 220V | 380V | (m3/min) | (rpm/min) | protection | proof class | (G) | dia.(mm) | ||
| BFS-300 | 180 | 180 | 24 | 1450 | ExdⅡBT4Gb | IP54 | W, WF1 | 3/4 | φ10～φ14 | |
| BFS-400 | 220 | 180 | 180 | 48 | ||||||
| BFS-500 | 380 | 350 | 300 | 95 | ||||||
| BFS-600 | 650 | 350 | 145 | |||||||
Outline & installation dimensions
| Size (mm) | ΦA | B | ΦC | Mounting hole |
| BFS-300 | 355 | 300 | 335 | 4-φ9 |
| BFS-400 | 455 | 300 | 435 | 4-φ9 |
| BFS-500 | 555 | 300 | 535 | 6-φ9 |
| BFS-600 | 655 | 300 | 635 | 6-φ9 |
Installation method
