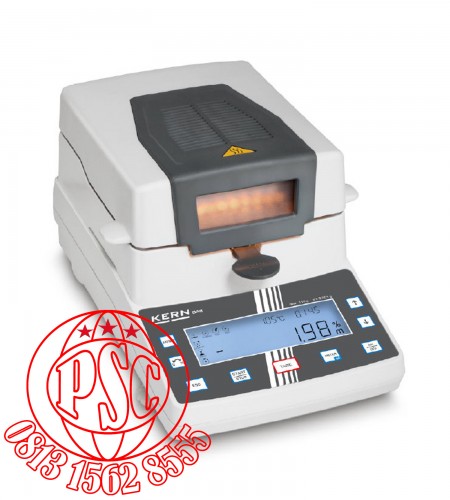

Moisture Analyzers DAB 100-3 Kern

Moisture Analyzers DAB 100-3 Kern

Features

Adjusting program ( CAL ) : For quick setting of the balance's accuracy. External adjusting weight required.

Memory : Balance contains memories, e.g. for tare weights, weighing data, item data,PLU etc.

Data interface RS-232 : To connect the balance to a printer, PC or network

GLP/ISO log : with weight, date and time. only with KERN printers, see Accessories

Weighing units : Can be switched to e.g. nonmetric units at the touch of a key. See balance model.

Mains part : mains part integrated in the balance. 230 V/50 Hz Standard type D, if requested also available in standard GB, AUS or  USA.

Strain gauge : An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing

1 years warranty

Options

Calibration certificate possible. The time required for calibration is 3-4 days

Technical data

Level indicator

Material weighing plate

Aluminium dish

Overall dimensions mounted (W x D x H )

240 mm x 365 mm x 180 mm

Revolving screw feet

Weighing surface ( d )

92 mm

Gross weight

6,100 kg

Net weight

4,820 kg

Display

Display digit height

14 mm

Display digit height

6 mm

Power supply

Input voltage

230 V AC 50 Hz

Measuring system

External calibration

Linearity

3 mg

Measuring range [ Max ]

199 °C

Readout [ d ]

1 mg

Reproducibility

1 mg

Resolution

110000

Stabilisation time

3 s

Tare range

110 g

Warm up time

2 h

Weighing range [ Max ]

110 g

Weighing system

Strain gauge

Weighing units

% Feuchte % Trockenmasse g

Environmental conditions

Max humidity

80 %

Max operating temp.

40 °C

Min ambient temp

5 °C

Min humidity

5 %
