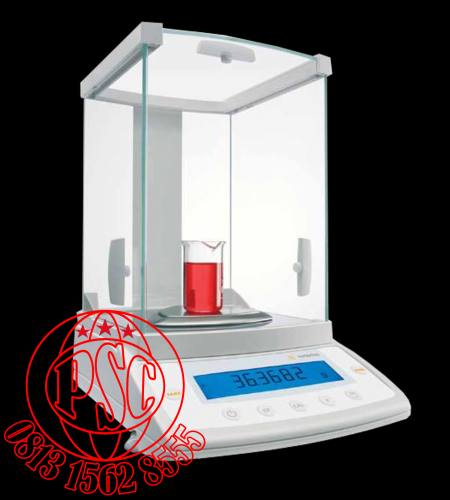

Analytical Balance CPA224S Sartorius

Analytical Balance CPA224S Sartorius

Specifications

Capacity x Readability

0 - 220 g x 0.1 mg

Repeatability

 ± 0.1 mg

Linearity (mg)

 ± 0.2 mg

Response Time (avg)

2 seconds

Tare Range

FULL to Capacity

Selectable Weight Units

g, kg, ct, lb, oz, ozt, tlh, tls, tlt, Gn, dwt,mg, /lb, tlc, mom, K, tol, bat and MS.

Selectable Applic Programs

Mass unit conversion by toggling, tare, net total, weighing in percent, counting, averaging

Display Update

0.1 - 0.4 seconds depended upon filter level selected

Display

LCD with backlit

Allowable Ambient Op. Temp.

0 °C to 40 °C ( 32 °F to 104 °F ), 85 % RH or less

Sensitivity Drift ( 10 °-30 °C/50 °F-86 °F )

± 1 ppm / °C

Internal Calibration

isoCAL - Motorized Internal Calibration

External Calibration

200 g Optional

Pan Size

ø80 mm / 3.1 in

3 side weighing pan

( inner diameter )*

Draft Guard Chamber Ht

232 mm / 9.13 in ( from pan to top of glass door )

Dimensions

213 x 342 x 340 mm

( entire balance ) W x D x H

8.4 x 13.5 x 13.4 in

RS-232 Interface

YES

Weighing Below

A port for a hanger for weighing below the balance is available.  You can attach a sample using a suspension wire, for example.  Common applications for weighing below the balance includes density determination

AC Power Source

AC Adapter 120 VAC

Power Consumption

Approx. 16 VA ( supplied by AC adapter )

Standard Equipment

120V AC Adapter, RS-232, 3 door draft shield, weigh below hanger, motorized internal calibration

Optional Accessories

Printer, RS-232 cable, RS-232 to USB converter kit, Carrying case, Rechargeable external battery pack, WinWedge data transfer software, external calibration mass
