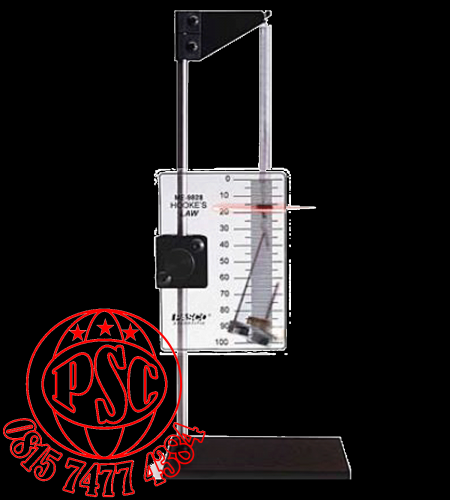

Hookes Law Set ME-9827 Pasco Scientific

Hookes Law Set ME-9827 Pasco Scientific

Overview

The Hooke's Law Set allows students to investigate the relationship between the force applied to a spring and the amount of stretch on the spring. This rugged set features a heavy base which allows the stretching of springs without toppling the unit. The transparent scale adjusts vertically to align zero with the brightly colored stretch indicator.

Includes

Stand with heavy base

Transparent scale with mm resolution

Horizontal support for spring

Brightly colored stretch indicator

Three springs with identical diameter and length, but different spring constants

Three of each spring included, for a total of nine springs: spring constants are 5 N/m, 8N/m, 70 N/m.

Specifications

Stretch Indicator

Fluorescent disc 6.6 cm diameter acrylic

Spring 5 N/m

Length ( with hooks ) = 6.4 cm diameter = 0.71 cm Spring constant = 5 N/m

Spring 8 N/m

Length ( with hooks ) = 6.4 cm diameter = 0.71 cm spring constant = 8 N/m

Spring 70 N/m

Length ( with hooks ) = 6.4 cm diameter = 0.71 cm spring constant = 70 N/m

Rod Stand

Lemi-steel length = 29.2 cm diameter = 0.64 cm

Mass Hanger

Mass = 5 g

base Support

11.4 x 7.6 x 0.6 cm
