FoodALYT MBS-SBS Micro & Standard Kjeldahl Block Digestion

FoodALYT MBS-SBS Micro and Standard Kjeldahl Block Digestion Units Omnilab

Nitrogen Determination acc. to Kjeldahl

FoodALYT MBS 160 Micro- and Standard Kjeldahl Block Digestion Units

FoodALYT MBS 400 Micro- and Standard Kjeldahl Block Digestion Units

FoodALYT SBS 800 Micro- and Standard Kjeldahl Block Digestion Units

FoodALYT SBS 2000 Micro- and Standard Kjeldahl Block Digestion Units

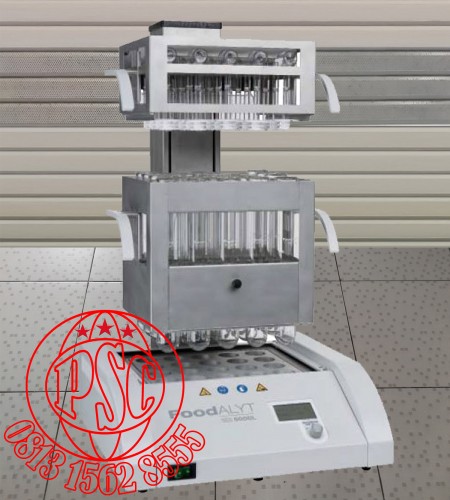

FoodALYT MBS 400L, SBS 5000L

The Block Digestion Systems of the L series are equipped with a fully automatic lift. This relieves the user of handling the heavy sample unit and hot chemicals. The software allows for a fully automatc digestion process. After an individually programmable cooling and suction time, the fume hood is raised into the final position. The programming allows for individually adaptable temperature profiles and starting times

Extremely simple and fast programming per one-button operation

Menu designed in various languages

10 freely configurable programmes for block temperature and digestion time

Applications storable

High power heater and extraction hood with exhaust gas collector

Digestion vessels 100, 250 and 400 ml

RS 232-interface

CE-conform and certified

Items supplier

All Block Digestion Units are delivered as complete systems, incl. digestion vessels, rack and extraction hood

Technical Data

Mains supply

230 V / 50 Hz

Temp.-control range

up to 430 °C, digitally adjustable

Time-setting rang

0 to 999 min, digitally adjustable

Programmer

10

Steps per programm

20

Display

LCD

Order Informations

Type

No. Of places

Vessels (ml)

Power (W)

Size (W x D x H)

Weight ( kg )

PU

Order No.

FoodALYT MBS 160

16

100

1000

43 x 46 x 77 cm

approx. 23

1

4700111

FoodALYT MBS 400

40

100

2000

43 x 46 x 77 cm

approx. 33

1

4700112

FoodALYT SBS 800

8

250

1000

43 x 46 x 77 cm

approx. 23

1

4700004

FoodALYT SBS 2000

20

250

2000

48 x 52 x 77 cm

approx. 33

1

4700005
